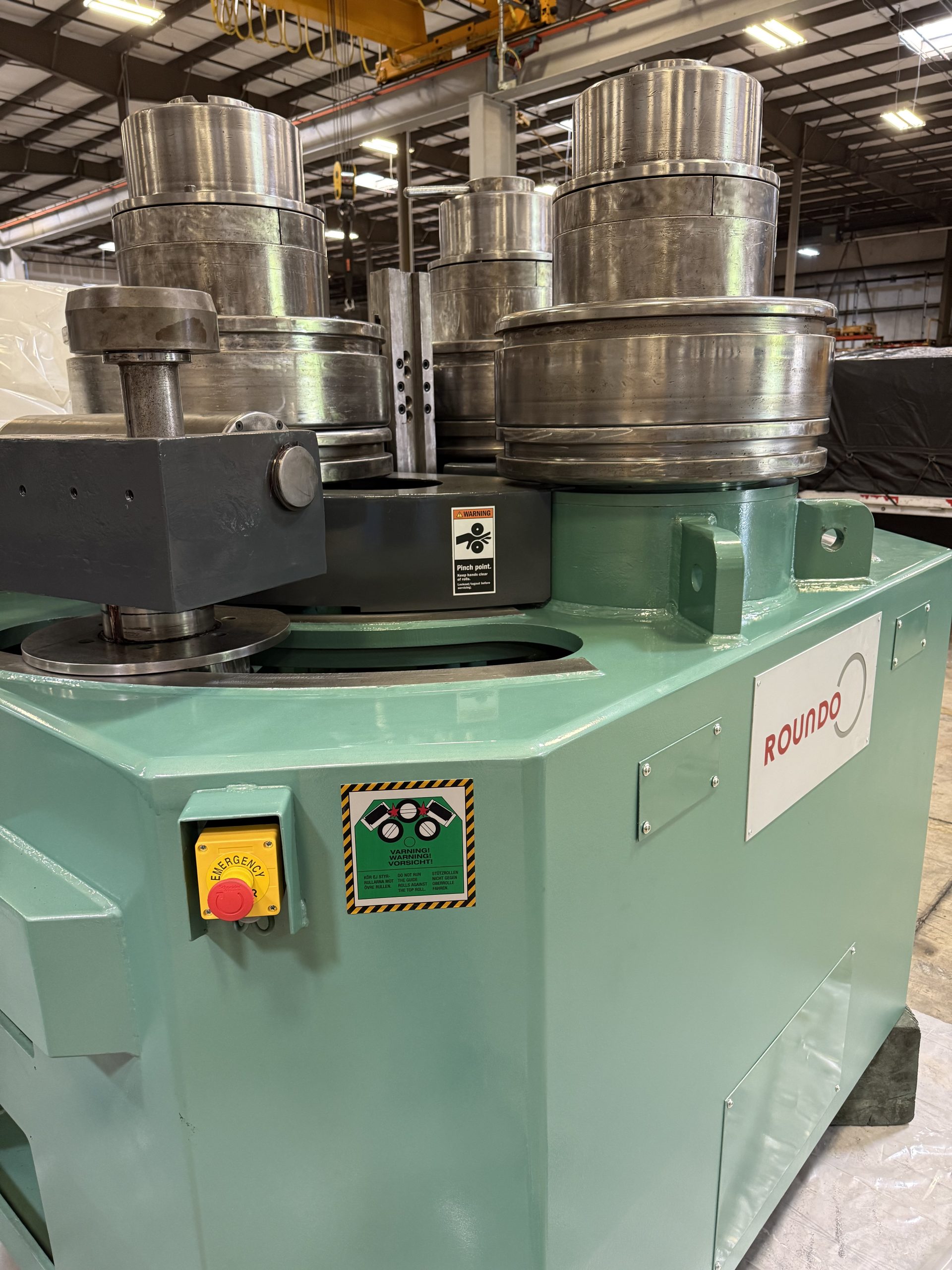

ROUNDO R-7S – REFURBISHED

Bending Capacity, Standard A-36 Steel with Standard Rolls.
Angle Leg Out:  6″ x 6″ x 1″
Angle Leg In:  6″ x 6″ x 1″
Flat Bar on Edge:  Up to 1-1/4” x 8”
 Flat Bar on Flat: Up to 12” x 2-1/2”
Square Bar Stock:  Up to 4-1/2” square (may require additional spacers for maximum sizes)
Bending Capacity, Standard A-36 Steel with Optional Rolls.
  Pipe:  Up to 8” Schedule 40
Hollow Structural Tubing:  Up to 6” x 6” x 3/8”
Beams/Channels (Easy Way):  Up to 14″
Beams/Channels (Hard Way):  Up to W8 x 21# or C8 x 18.75# (with included beam-on-edge attachment)

Universal Rolls for Flat Bar, Angle Iron, T-Bars, Solid Rod, Channels and Beams. Optional rolls for hollow pipe and other profiles.

• 3-Roll Double Pinch Angle Roll
• Hydraulic Guide Rolls
• Hydraulic Beam on Edge Device

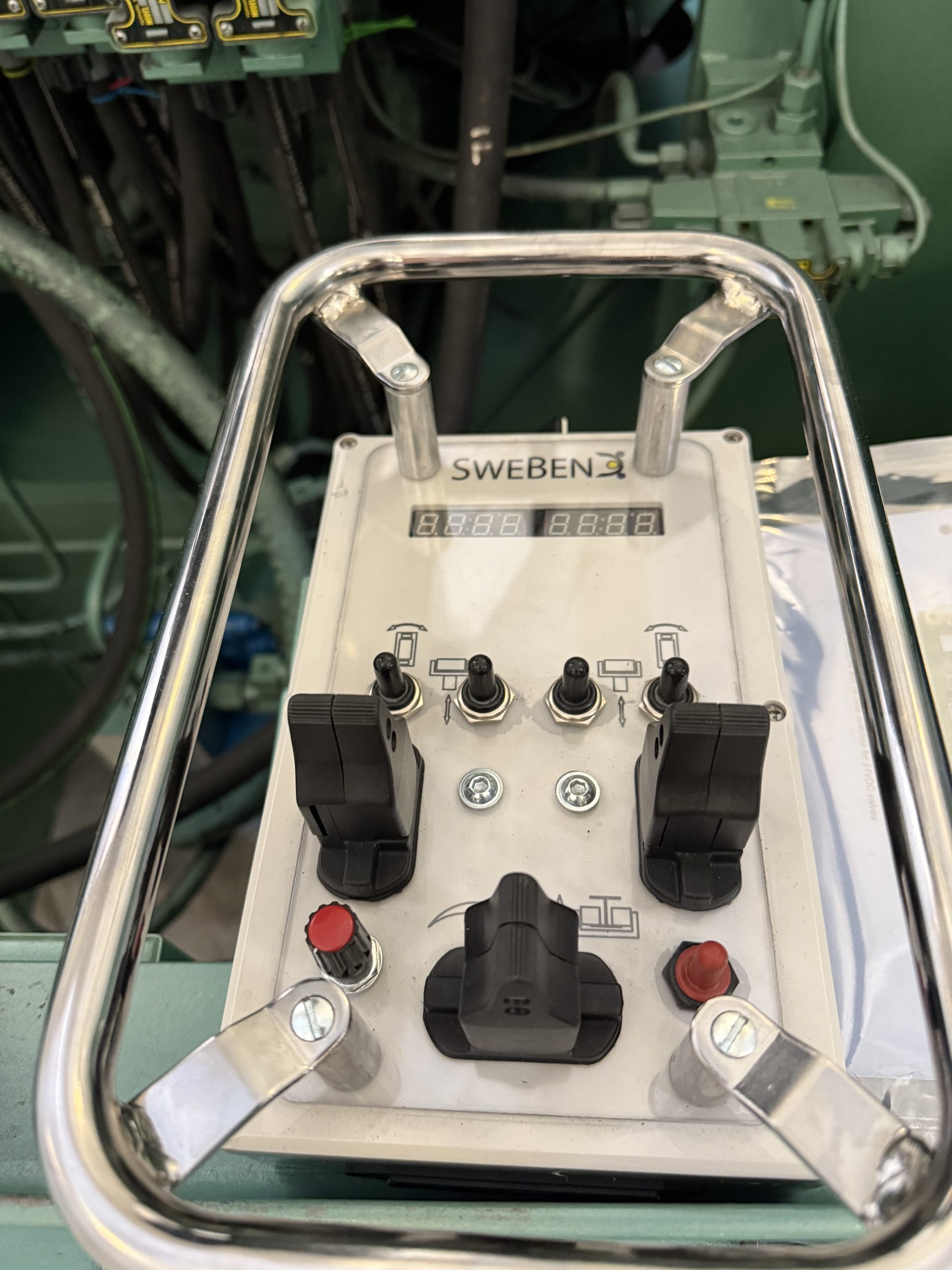

• Wireless Bluetooth Control Unit
• Digital Readouts for Lower Roll Positions

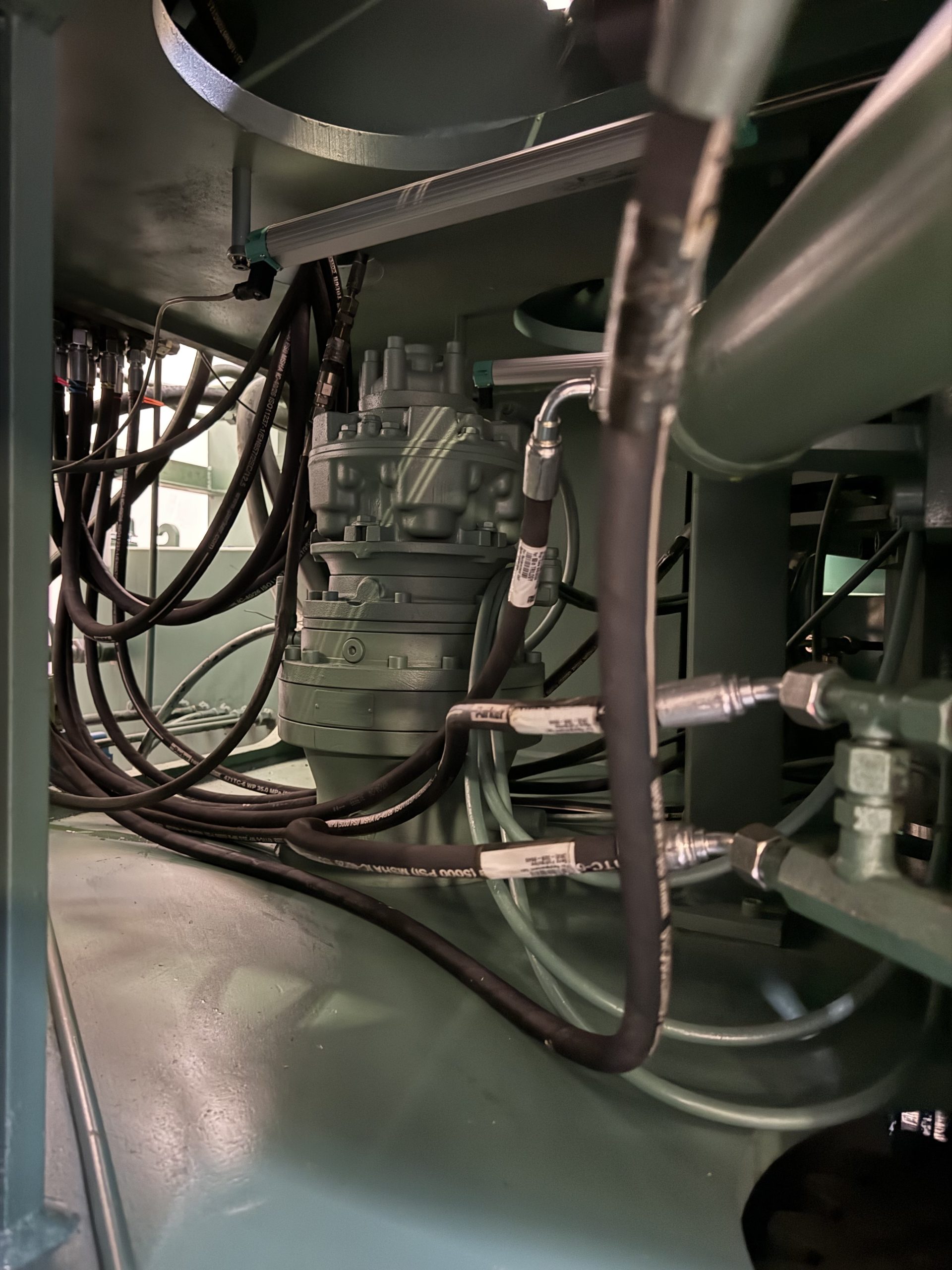

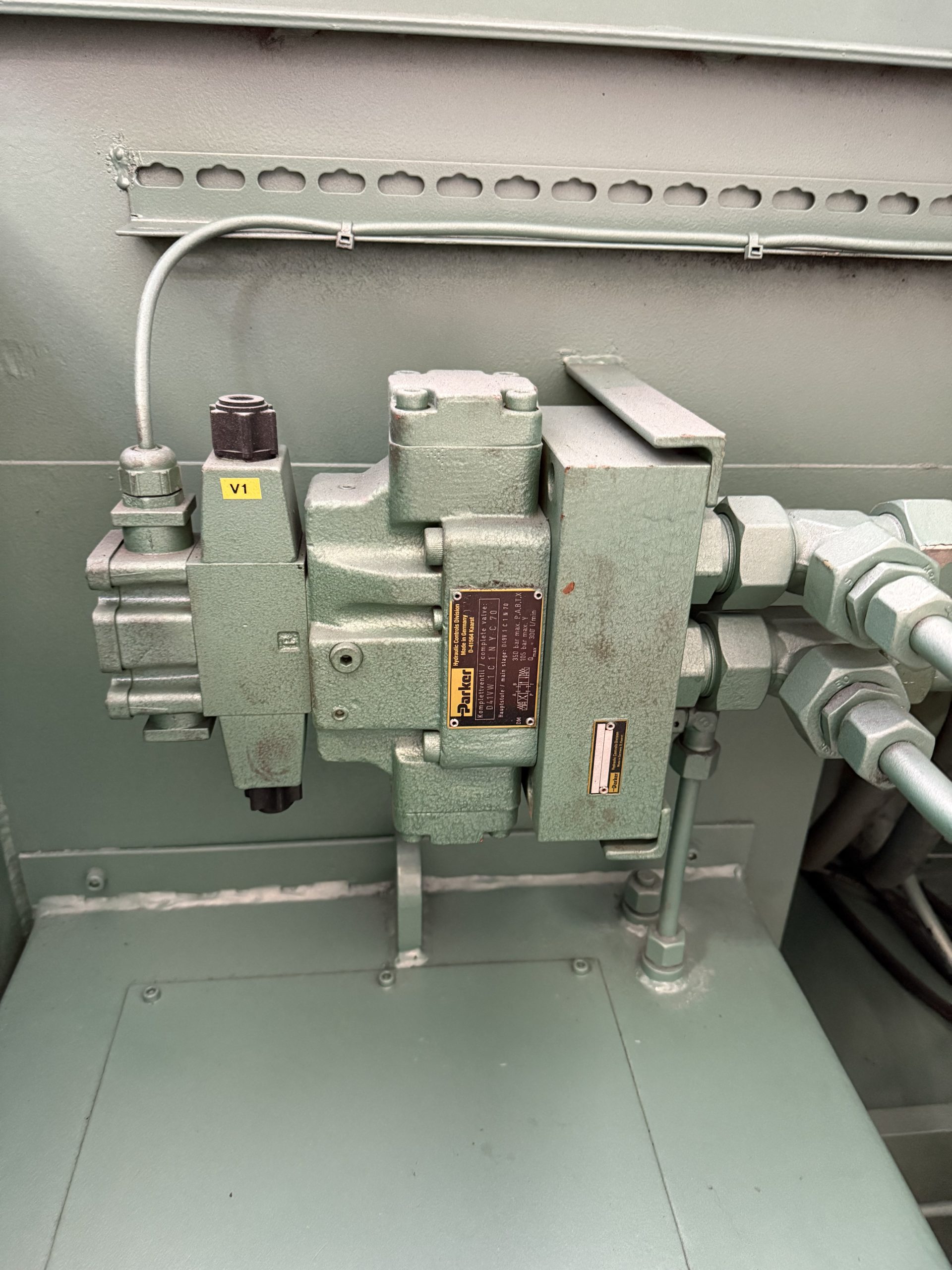

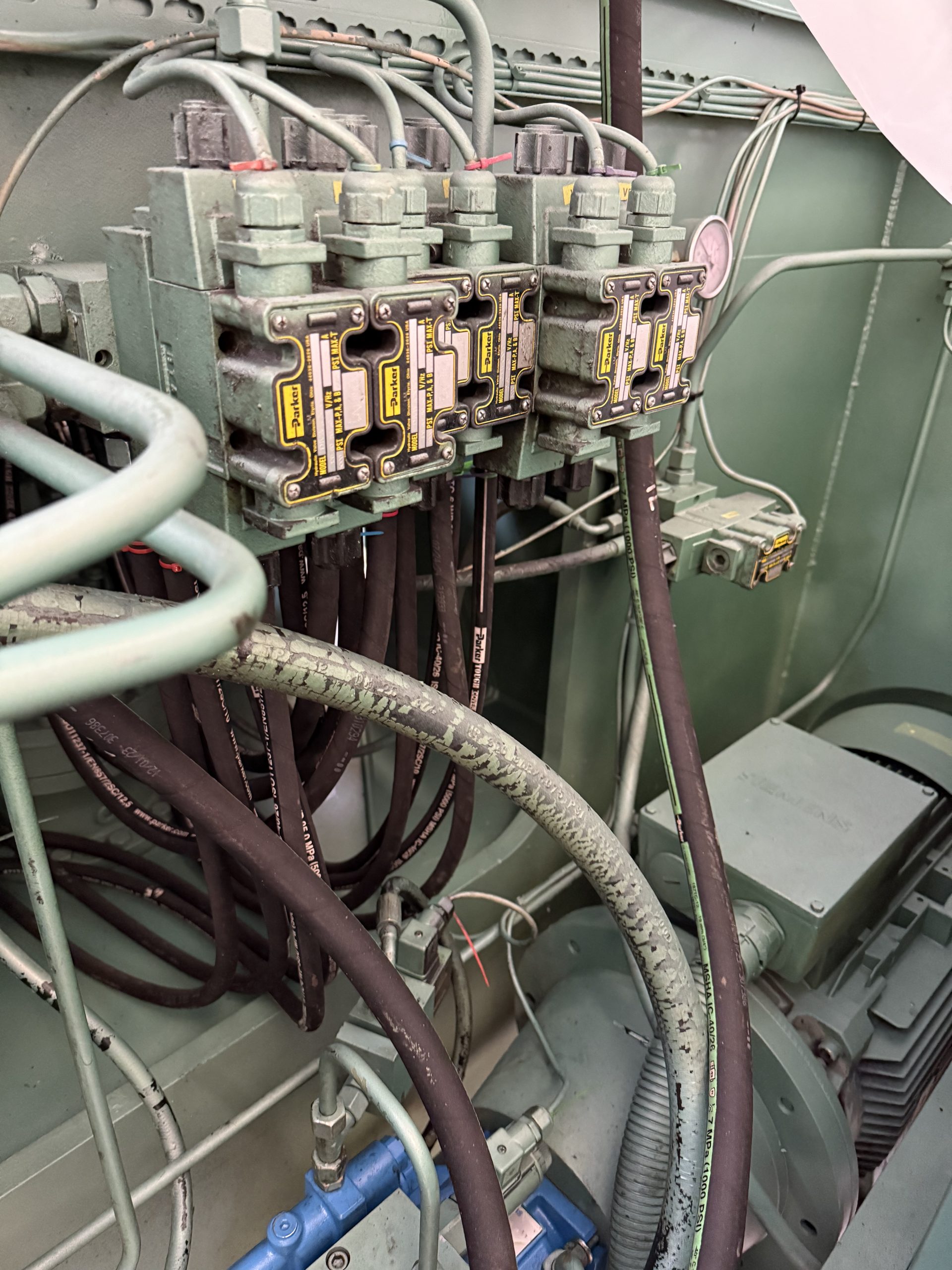

• Hydraulic Drive with Variable Speed

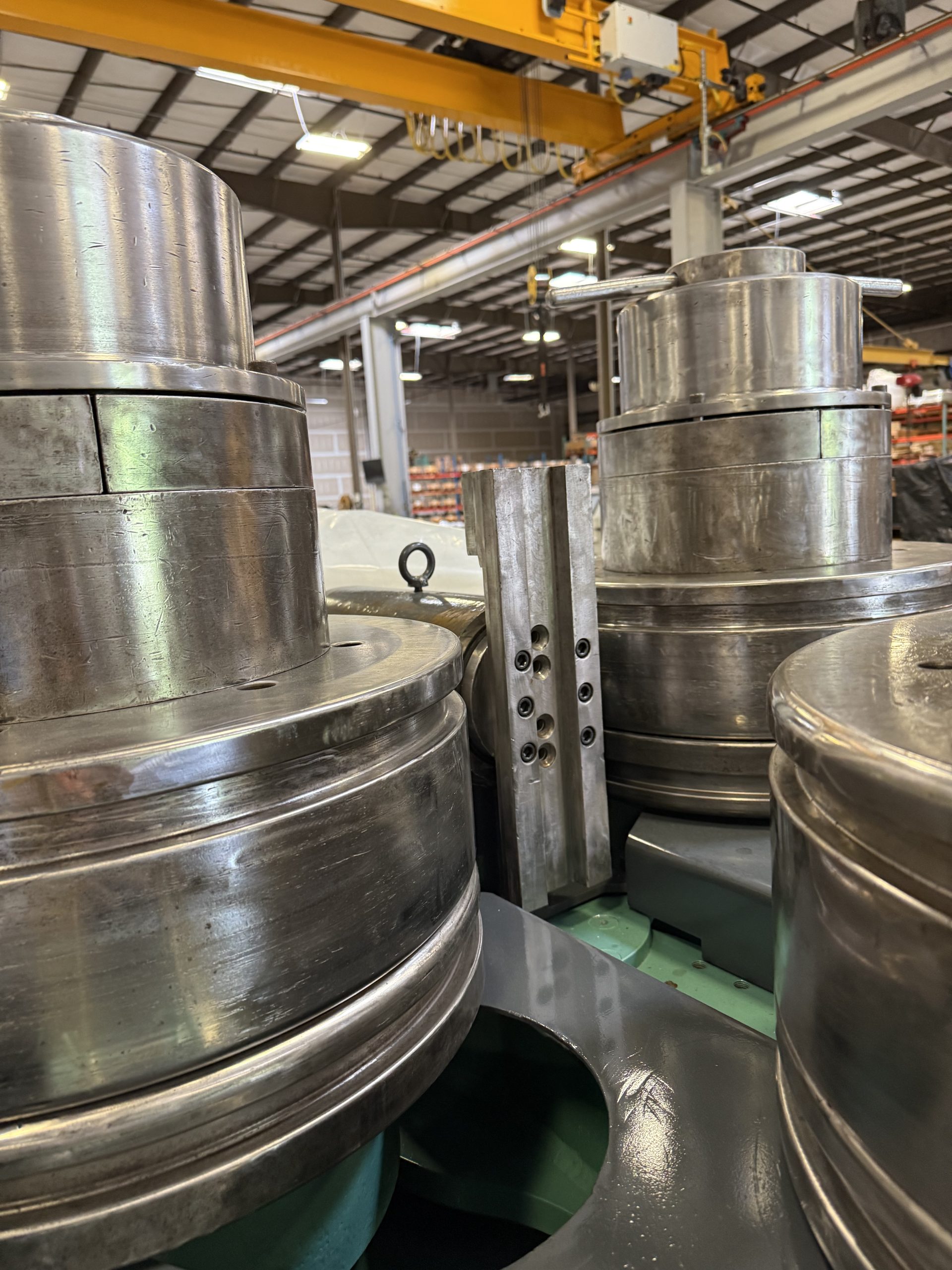

• Universal Rolls for Flat Bar, Angle Iron, T-Bars, Solid Rod, Channels and Beams

Optional Rolls

Round Pipe Rolls – Single or Double Groove.  Hardened Steel or Nylon

Square/Rectangular Pipe Rolls – Two Corner Radii of Customer’s Choosing
