SWEBEND SB Series

Angle and Section Rolls

SweBend

Powerful and flexible, the SweBend SB series of angle and section bending rolls are the preferred choice by industry-leading manufacturers for rolling various profiles such as angles, channels, beams, and more.

Experience maximum drive torque throughout the entire speed range and maximize your efficiency by completing bending jobs in fewer passes.

A wide range of models, including some with CNC, ensures the correct machine for any rolling application. From structural steel and extruded aluminum profiles to hollow tubes and pipe, SweBend has options for your unique applications which give you the tools needed to make even the toughest rolling applications easier and faster to produce.

SB3 Series

Three-Roll Angle Roll

The SB3 series is the perfect angle roll for various applications, featuring universal tooling and a wide capacity range.


SB4 Series

FOUR-Roll Angle Roll

Ideal for use with SweBend’s Seven CNC control, the four-roll angle rolls give you even greater advantages and performance.

Not sure which machine is right for you? Contact our experienced team today.

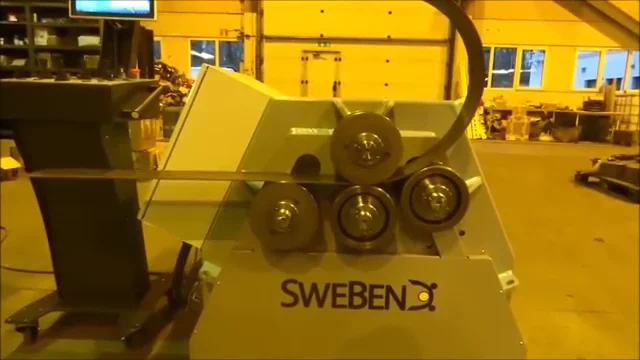

The SweBend SB3 Series
Three-Roll Double-Pinch Angle Bending Rolls

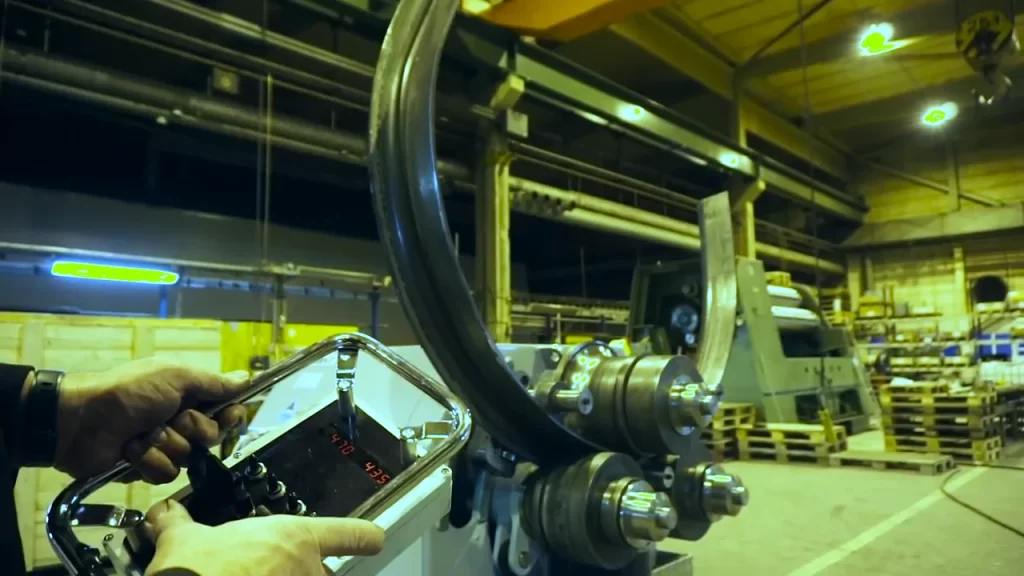

The SB3 angle roll series features guide rolls that follow the main bending rolls. The guide rolls are mechanically adjusted to support the material entering the machine and facilitate the rolling of asymmetric sections like angle iron. Operate your machine with our Bluetooth Bending Control – customized for you. The future is here! The SweBend SB3 Angle Roll will ensure your crucial position as a multifaceted bending specialist.

Standard Features
  • Universal roll set for common profiles such as angle, flat bar, and T’s.
  • Digital Readouts for Roll Positions
  • Wireless Bluetooth Control (most models)
  • Variable Speed (most models)
  • Vertical or Horizontal Rolling (most models)
  • Guide Rolls for rolling asymmetric shapes (manual or powered hydraulic, depending on machine size)
  • High-quality commercial components, including SKF bearings
Optional Equipment
  • Special roll sets for virtually any profile shape or size
  • Robotic Loading and Unloading
  • Turbo Package – Increased Drive Torque
  • Angle Measurement System
  • Dynamic Radius Adjustment System

Custom-designed angle and section rolls are also available for virtually any application. Never hesitate to ask us for advice!

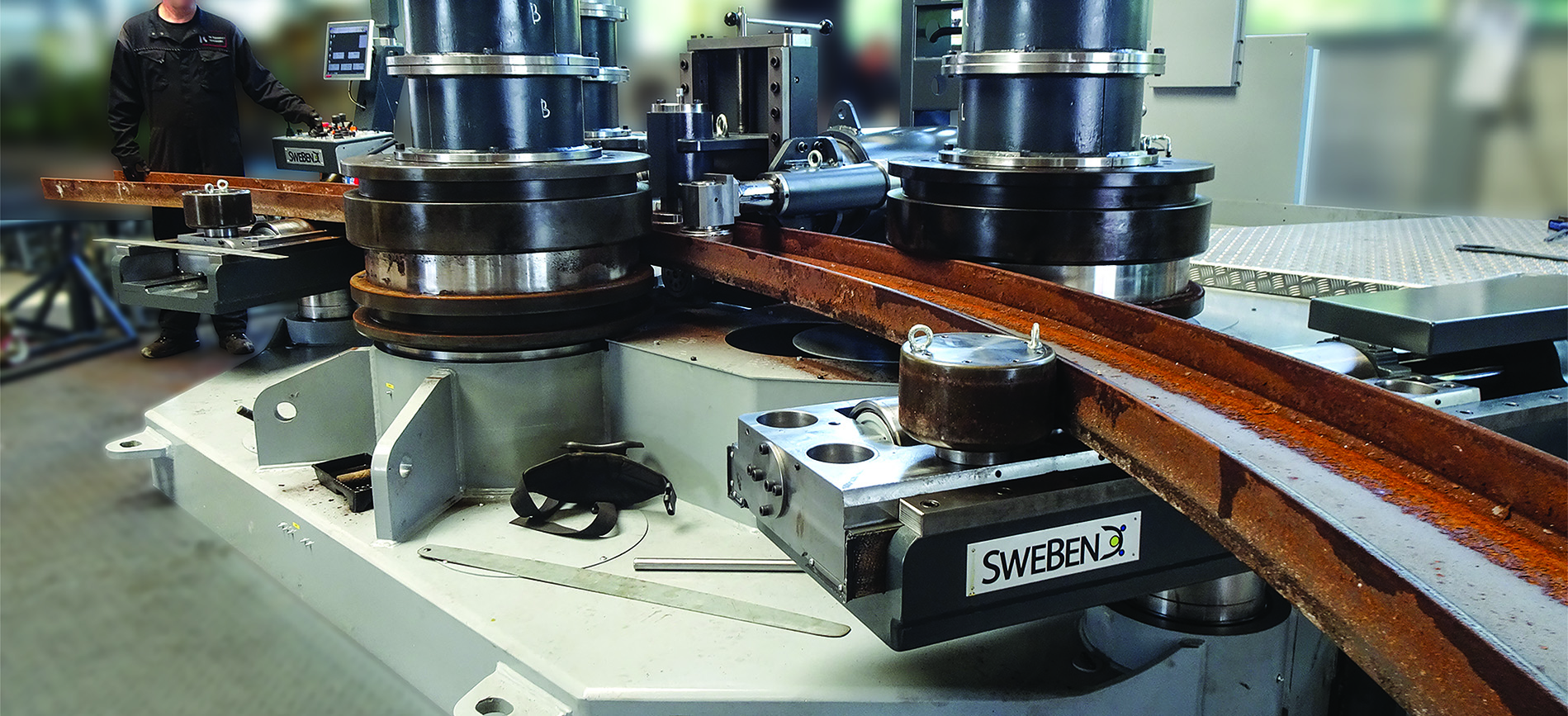

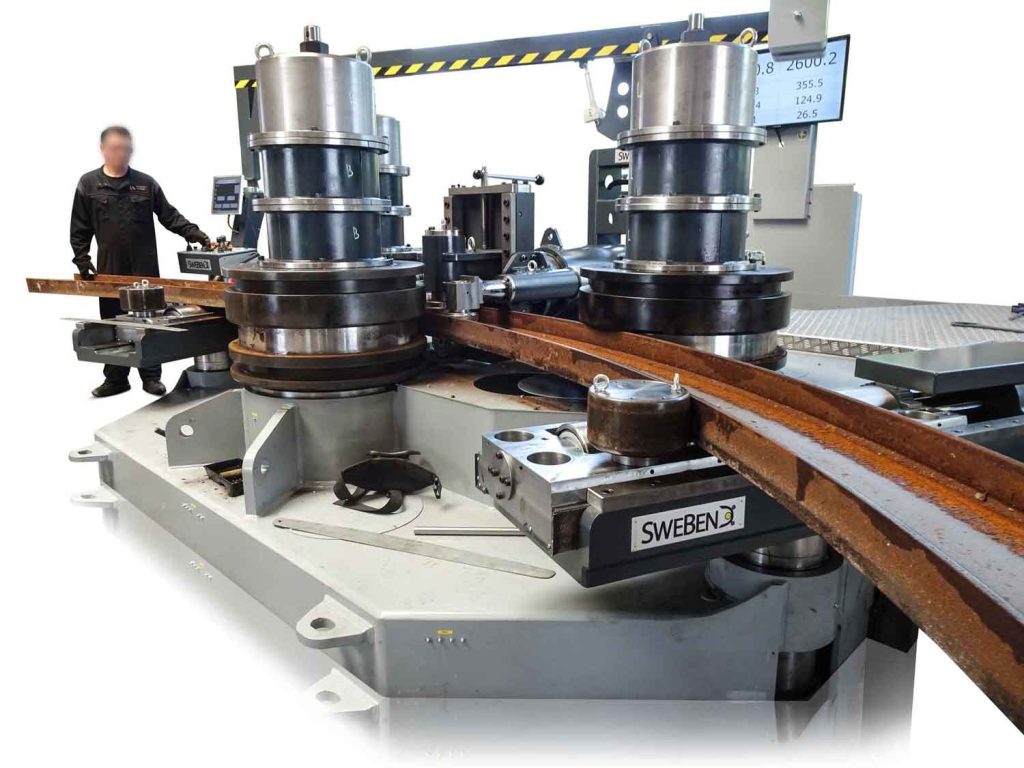

The SweBend SB4 Series
Four-Roll Double-Pinch Angle Bending Roll

The SB4 angle roll series with the SEVEN CNC system is ideal for repetitive series production. The series is powered by our unique hydraulic solution which makes it possible to interpolate ALL machines’ axes simultaneously. Create optimal results in only one pass with our double pinch bending mechanism. These machines are what “Precision Bending, Simplified” really means.

Standard Features
  • Universal roll set for common profiles such as angle, flat bar, and T’s.
  • Digital Readouts for Roll Positions
  • Wireless Bluetooth Control (most models)
  • Variable Speed (most models)
  • Vertical or Horizontal Rolling (most models)
  • Guide Rolls for rolling asymmetric shapes (manual or powered hydraulic, depending on machine size)
  • High-quality commercial components, including SKF bearings

Featured models

Model Capacity Description Price Status Info
SWEBEND SB3B-65
Capacity: 2″ x 2″ x 5/16″
2″ x 2″ x 5/16″

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Dual Execution (Vertical/Horizontal), Manual Guide Rolls. **Compatible with Roundo R-2 Tooling**

PRICE UPON REQUEST
In Stock!
Get a Quote
SWEBEND SB3B-75
Capacity: 3″ x 3″ x 5/16″
3″ x 3″ x 5/16″

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Dual Execution (Vertical/Horizontal), Manual Guide Rolls. **Compatible with Roundo R-3  and R-3S Tooling**

PRICE UPON REQUEST
In Stock!
Get a Quote
SWEBEND SB3-85S
Capacity: 3″ x 3″ x 3/8″
3″ x 3″ x 3/8″

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Dual Execution (Vertical/Horizontal), 6-Direction Independent Hydraulic Guide Rolls.

PRICE UPON REQUEST Get a Quote
SWEBEND SB3-85S CNC
Capacity: 3″ x 3″ x 3/8″
3″ x 3″ x 3/8″

Refurbished, 3-Roll Hydraulic Section Bending Roll. SweBend Seven GOLD CNC Control, Pneumatic Length-Measuring Wheel, Variable Speed, Dual Execution (Vertical/Horizontal), 6-Direction Independent Hydraulic Guide Rolls,

INQUIRE FOR QUOTE
In Stock!
Get a Quote
SWEBEND SB3B-105
Capacity: 3.5″ x 3.5″ x 3/8″ Angle
3.5″ x 3.5″ x 3/8″ Angle

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Dual Execution (Vertical/Horizontal), Manual Guide Rolls. **Compatible with Roundo R-4  and R-4S Tooling**

PRICE UPON REQUEST
On Order
Get a Quote
SWEBEND SB3S-105
Capacity: 4″ x 4″ x 1/2″
4″ x 4″ x 1/2″

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Dual Execution (Vertical/Horizontal), Hydraulic Guide Rolls. **Compatible with Roundo R-4  and R-4S Tooling**

PRICE UPON REQUEST Get a Quote
SWEBEND SB3S-140
Capacity: 5″ x 5″ x 1/2″ Angle
5″ x 5″ x 1/2″ Angle

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Hydraulic Guide Rolls. **Compatible with Roundo R-5, R-5S, R-52S Tooling**

PRICE UPON REQUEST
On Order
Get a Quote
SWEBEND SB3S-180
Capacity: 6″ x 6″ x 1/2″ Angle
6″ x 6″ x 1/2″ Angle

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Hydraulic Guide Rolls. **Compatible with Roundo R-6, R-6S, R-62S Tooling**

SOLD Get a Quote

It probably does the most work in our shop out of all of our machines.

I’ve bought all of my machines from Trilogy. When I was ready to upgrade, I talked to them about the SweBend angle roll and plate roll machines. They’ve cut down our man hours and get us to a better product faster.

Richard Peterson

Atlantic Fabricators / Elkton, MD
