LEMAS TR Series

Three-Roll Plate Bending Rolls

The LEMAS TR Series capacity ranges from 3′ to 10′ in length, and up to 5/8″ thick.

The LEMAS TR Series initial pinch bending rolls feature hydraulic adjustment of the rear bending roll and the lower pinch roll. In addition, the rear roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls.

Unique to LEMAS initial pinch machines is the Quick and Easy pinch gauge adjustment. Consistent positioning of the lower pinch roll is critical to rolling consistent quality cylinders. By simply inserting a small tab of the material thickness to be rolled into the pinch gauge control, the lower pinch roll is properly positioned to ensure consistency.

Other standard features include Direct-Drive Design using no belts, cone rolling attachment, rolls heat treated to 50Rc, digital readout for positioning the rear bending roll, and grooves for 1/4″, 3/8″ and 1/2″ round bar (except 80 series models).

Lemas Sales & Support
We’re here to help!


Did you know?

Sumitomo gearless speed reducers, featured on all LEMAS machines, have advantages superior to speed generic reducers with limited contact points. The Cyclo-Drive has two-thirds of its gears in contact at all times. This design enables Cyclo speed reducers and gear motors to withstand shock loads exceeding 500% of their ratings and provide exceptional performance, reliability, and long life.

Not sure which machine is right for you? Contact our experienced team today.

Get to know the LEMAS TR Series

Standard Features
  • -Direct-drive design using no belts or chains -Less maintenance, better performance
  • -Spherical roller bearings on all rolls
  • -Hydraulically powered bending roll – No manual adjustment needed.
  • -Power tilting side bending roll for cone rolling – No need to manually adjust for cone bending
  • -Cone bending attachment – Already integrated for your cone bending needs

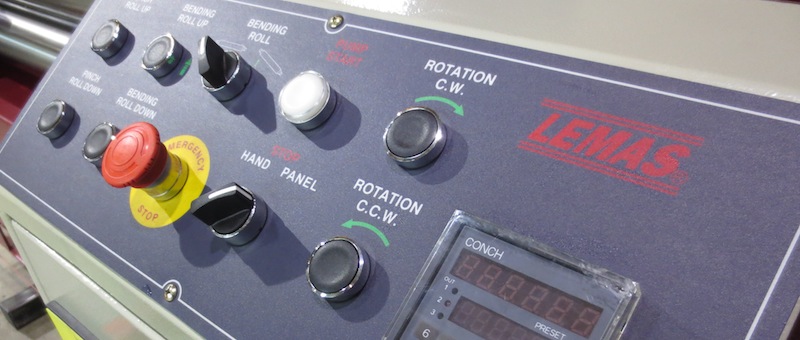

  • -Control panel with digital readout for the position of the side bending roll – All machine controls are easily located.
  • -Hydraulically operated drop-end for quick removal of rolled product – Easy open allows you to easily slide out the finished part

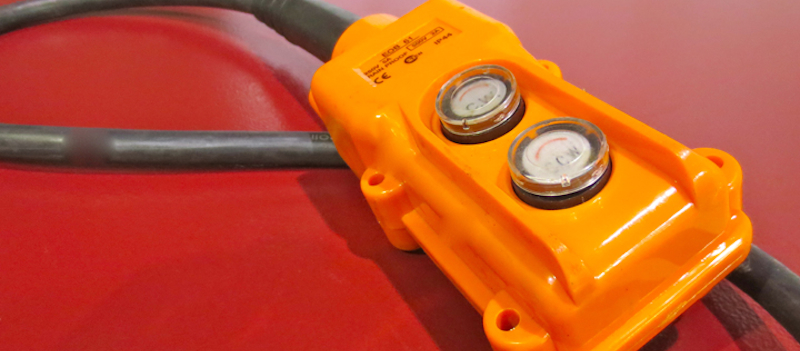

  • -Forward/Reverse rotation controls – Ability to walk around the entire machine while controlling rotation
  • -Upper and lower pinch rolls driven
  • -All rolls heat treated to 50 Rc – Keeping your rolls in peak condition as long as possible
  • -Sumitomo Cyclo® 6000 gear-less speed reducers – The hardest working in the industry.
  • -Manual tilt of the lower pinch roll
  • -Emergency stop cable
  • -Hydraulic oil, tools, training video, schematics, technical manual
Optional Equipment
  • Top support
  • Infinitely Variable Speed Control
  • Control panel on wheels
  • And more

Custom-designed plate rolls are also available. This can be a special roll diameter or roll length or even the shape of the rolls. Grooves or hardened rings enable the rolling of plates with flanges. Never hesitate to ask us for advice!

I was blown away by how easy it was to use.

I can notice a difference in what I built in 2004 (before the Lemas machine), and what I’m building now. They’re two different things entirely.

Jamie Cumming

Loki Custom Furniture / Boston, MA

Standard models

Model Capacity Description Price Status Info
LEMAS TR 80/3
Capacity: 3′ x 13 Ga. Mild Steel
3′ x 13 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$20,300.00
In Stock!
Get a Quote
LEMAS TR 80/4
Capacity: 4′ x 14 Ga. Mild Steel
4′ x 14 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$20,500.00
On Order
Get a Quote

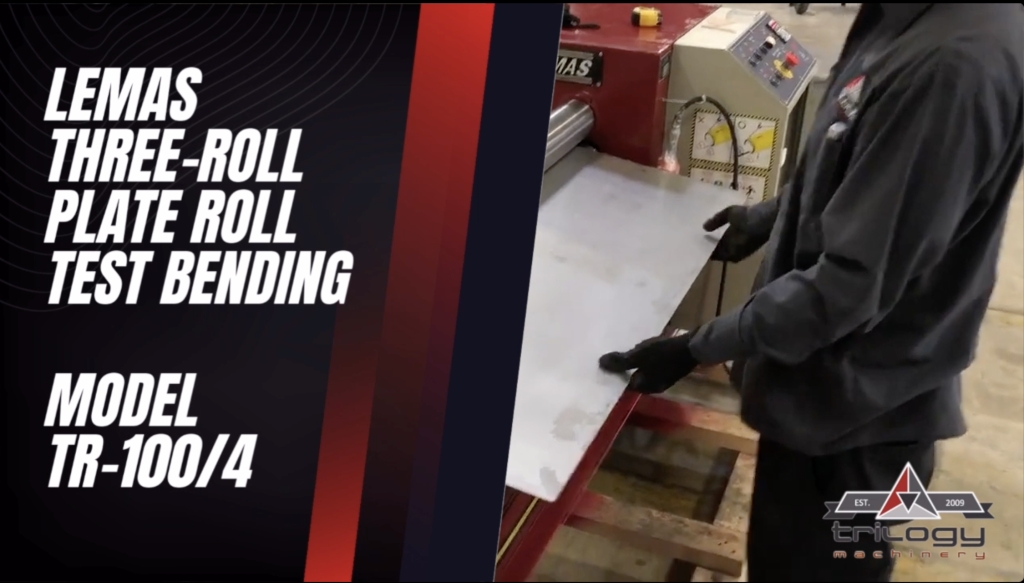

LEMAS TR 100/4
Capacity: 4′ x 11 Ga. Mild Steel
4′ x 11 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$22,250.00
Inquire / Ask Us!
Get a Quote
LEMAS TR 120/4
Capacity: 4′ x 10 Ga. Mild Steel
4′ x 10 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$27,000.00
Due In Soon!
Get a Quote
LEMAS TR 160/4
Capacity: 4′ x 1/4″ Mild Steel
4′ x 1/4″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$28,000.00
In Stock!
Get a Quote
LEMAS TR 200/4
Capacity: 4′ x 9/16″ Mild Steel
4′ x 9/16″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$35,500.00
On Order
Get a Quote
LEMAS TR 100/5
Capacity: 5′ x 12 Ga. Mild Steel
5′ x 12 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$22,650.00
On Order
Get a Quote
LEMAS TR 120/5
Capacity: 5′ x 10 Ga. Mild Steel
5′ x 10 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$27,250.00
In Stock!
Get a Quote
LEMAS TR 140/5
Capacity: 5′ x 3/16″ Mild Steel
5′ x 3/16″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$28,250.00
On Order
Get a Quote
LEMAS TR 160/5
Capacity: 5′ x 1/4″ Mild Steel
5′ x 1/4″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$28,750.00
On Order
Get a Quote

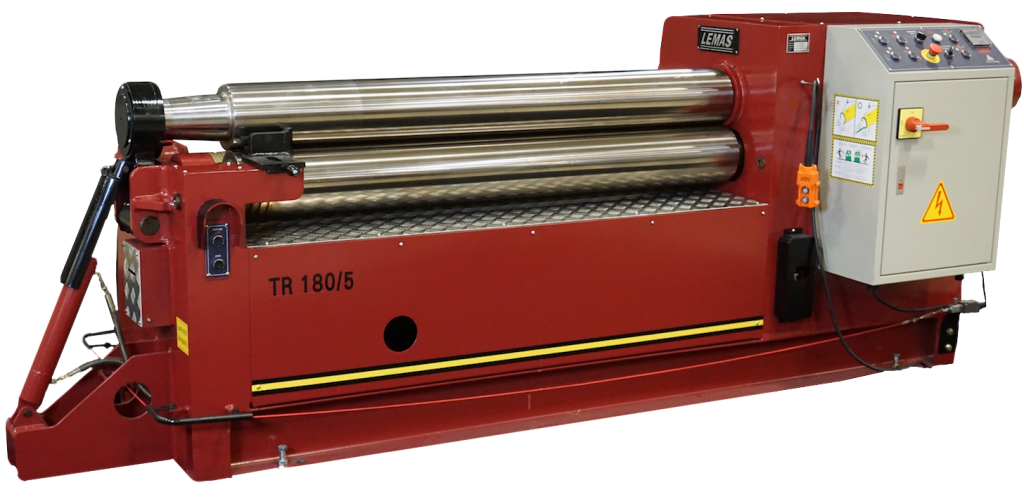

LEMAS TR 180/5
Capacity: 5′ x 5/16″ Mild Steel
5′ x 5/16″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$32,500.00
Sold
Get a Quote

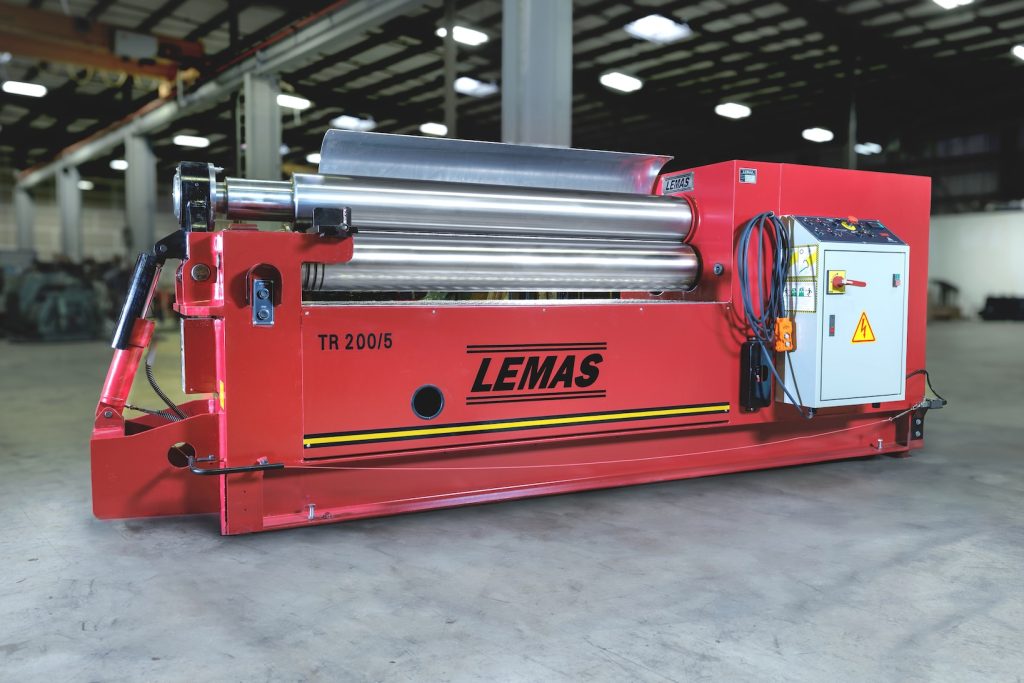

LEMAS TR 200/5
Capacity: 5′ x 1/2″ Mild Steel
5′ x 1/2″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$37,500.00
On Order
Get a Quote
LEMAS TR 160/6
Capacity: 6′ x 3/16″ Mild Steel
6′ x 3/16″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$30,500.00 Get a Quote
LEMAS TR 180/6
Capacity: 6′ x 1/4″ Mild Steel
6′ x 1/4″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$36,000.00
In Stock!
Get a Quote
LEMAS TR 200/6
Capacity: 6′ x 3/8″ Mild Steel
6′ x 3/8″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$39,250.00
In Stock!
Get a Quote
LEMAS TR 180/8
Capacity: 8′ x 3/16″ Mild Steel
8′ x 3/16″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$38,500.00 Get a Quote
LEMAS TR 200/8
Capacity: 8′ x 5/16″ Mild Steel
8′ x 5/16″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$44,500.00
On Order
Get a Quote
LEMAS TR 180/10
Capacity: 10′ x 10 Ga. Mild Steel
10′ x 10 Ga. Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$44,750.00 Get a Quote
LEMAS TR 200/10
Capacity: 10′ x 1/4″ Mild Steel
10′ x 1/4″ Mild Steel

New, Direct-Drive, 3-Roll, Initial Pinch, Digital Readout, Hardened Rolls, Cone Bending Attachment and More!

$49,500.00 Get a Quote
