Sunrise IW-110SD – Semi-CNC Hydraulic Ironworker with Triple Punch

Sunrise IW-110SD Capacities

Punch: 110 Tons

Throat: 20″

Angle Shear: 6″ x 6″ x 1/2″

Plate Shear: 25″ x 9/16″ – 14″ x 1″

Notcher: 2″ x 3-1/2″ x 3/8″

HP: 15

Power Requirements: 3 Phase | 220/480

• Semi-Automatic CNC Dual-Cylinder – Dual-Operator – Ironworker
• Hydraulic Punch Stripper
• Triple Punch Attachment – 1.5″ Middle Punch – 1.125″ Capacity Side Punches
• Hydraulic Angle and Plate Shear Hold Downs
• 120″ x 16″ Table
• 15″ Touch-Screen controller, offline software, DXF/NC1 Import


  SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand:

  • 40″ Touch-and-Cut Electric Back Gauge – Can use with the CNC Shear
  • Machined Notcher Gauge Table with X-Y Positioning
  • LED Magnetic-Base Work Light
  • Set of 11 Punches & Dies from American Punch –  3/8″ – 1-1/2″
  • Reversible Structural Die Block for up to 2″ diameter hole capacity including overhang for angle and channel flange punching
  • Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
  • Full tank of Hydraulic Oil
  • HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine.
  • Extensive List of Optional Equipment: Accessory PDF

  SUNRISE offers one of the widest ranges of CNC options today, including semi and fully-automatic punches, automatic shearing, and new complete processing systems.

Overview of the SUNRISE Semi-Automatic CNC Ironworker:

The Semi-Automatic CNC positioning tables from SUNRISE are designed for plate, angle, and channel positioning and feature user-friendly touch-screen interfaces. Factory-installed on any dual-cylinder ironworker or punching machine with a 20” or larger throat dept, they can virtually eliminate your manual layout!

Controlled with an all-flash memory-based Windows computer and a pendant-mounted HD touch-screen monitor, the intuitive yet simple programming enables your operators to learn the controller in minutes.

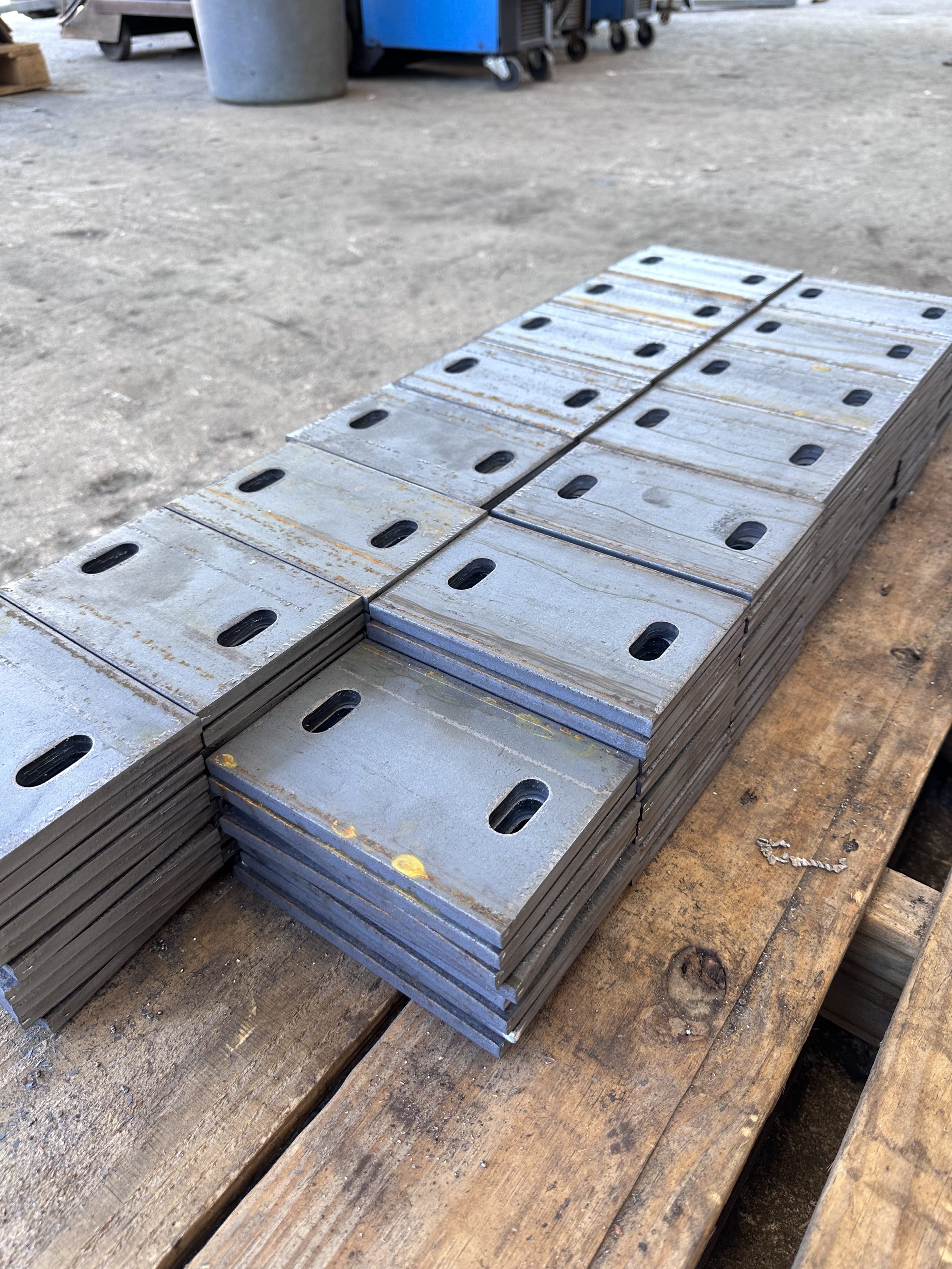

Execution: The operator loads the program, positions the material against the CNC-controlled X and Y stops, and initiates the punch.. While holding the plate in position, they step on the foot pedal, punching the hole. Then, the CNC-controller X and Y back gauge automatically moves to its next position.

Standard Features:

–Mitsubishi Servo Motors – The best Japanese brushless servo motor in the business with 590”/min speed and positioning accuracy of 0.004” powered by Mitsubishi servo amplifiers in a fan-cooled cabinet.

– NIASA Ball-Screw—This High-Torque-Rated ball-screw ensures accuracy even while gauging heavy steel parts. It is coupled with proximity sensors for machine calibration and travel range detection.

–Advantech Windows PC Controller – 15” HD touchscreen, built-in templates, off-line software, ethernet, WiFi, DXF/NC1 import, and more!

–Hydraulic Stripper – Your material is clamped with proportionate pressure to ensure the best hole quality. Coupled with an adjustable stroke hydraulic cylinder for up to 30 stroke per minute at ¾” travel.

-Machined-Flat Gauging Table – Features all-steel design, replaceable ball transfers, and X/Y gauges. The entire frame is bolted to a machined steel tube, secured with leveling feet.

Sunrise offers a complete list of accessories and other attachments for your ironworker. Download the latest accessory brochure for the latest information.
