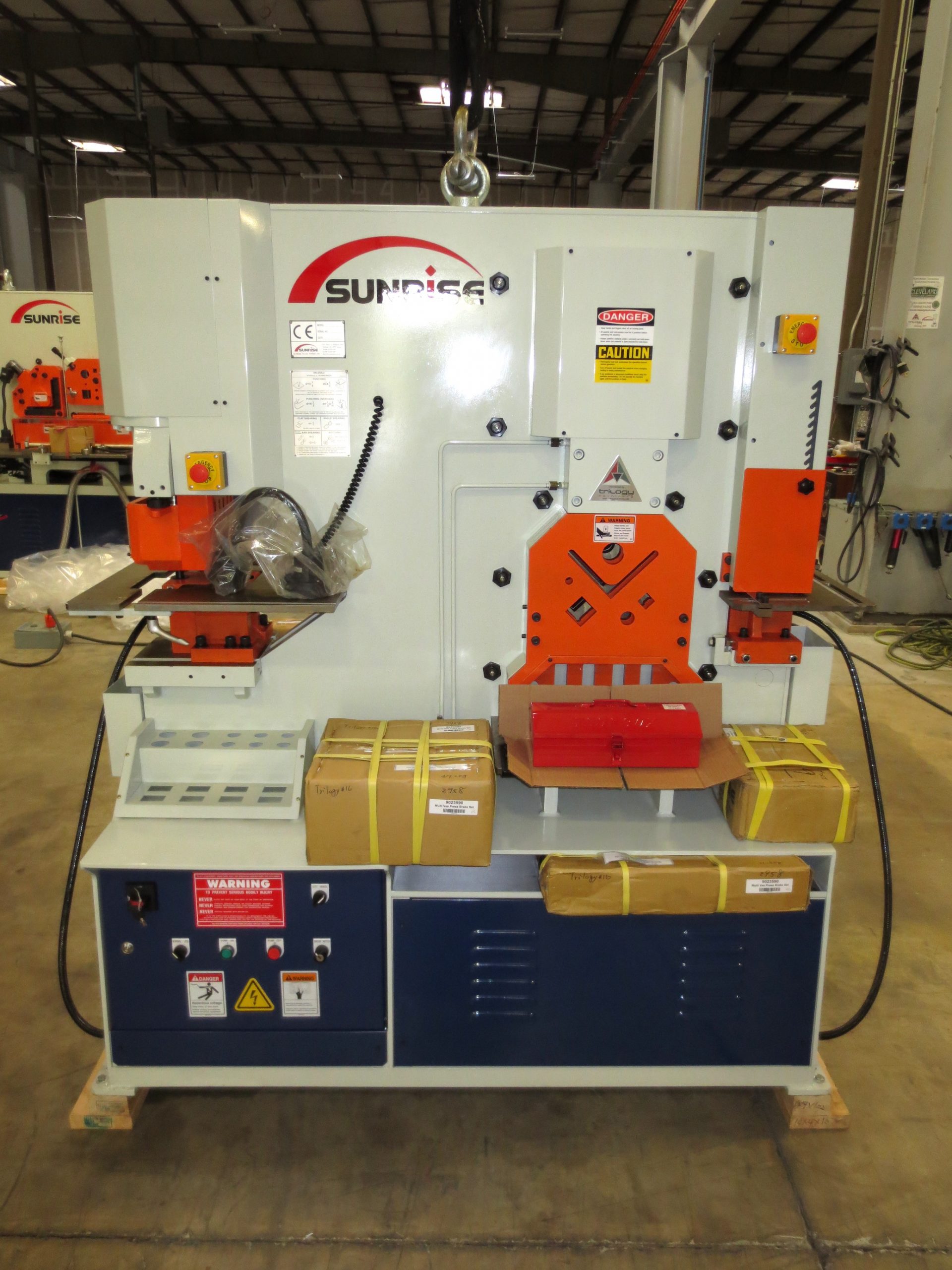

Sunrise IW-95KD – Hydraulic Ironworker
$44,750.00 Sale: $36,500.00
Capacities
Sunrise IW-95KD Capacities
Punch: 95 Tons – 2″ in 5/8″ material or 1″ in 7/8″ material
Throat: 16″
Angle Shear: 5″ x 5″ x 1/2″ – Integrated Hydraulic Hold Down
Plate Shear: 16″ x 3/4″ – Integrated Hydraulic Hold Down
Notcher: 2-1/2″ width x 3-1/2″ depth in 7/16″ material
HP: 10
Power Requirements: 3 Phase | 220/480
Machine Size: 70″ L x 40″ W x 74″ H – 6,000 Lbs
Product Features
- 95 Ton Punch
- Dual-Cylinder – Dual-Operator – Two Foot Pedals
- All vertical movement from both cylinders
- Five fully integrated working stations
- Angle shear 5 x 5 x 1/2″
- Plate Shear: 14″ x 3/4″
- Integrated hydraulic hold down for all shear functions.
- Angle shear with no material loss cut and four-edge blades
- Heavy-Duty adjustable punch stripper with visibility window
Description
SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 Tons to 185 Tons and feature two High-Speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well engineered products for high power, quality and reliability at an incredible price.
SUNRISE ironworkers have two foot pedals so separate punching and shearing operations can be safely performed simultaneously without interference.
The low pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling and more.
The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom designed tooling.
SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the integrated spin-on return line filter, bronze bushings and gibings, multi-sided blades and the highest quality components as well a standard two year parts warranty.
Accessories
Sunrise offers a complete list of accessories and other attachments for your ironworker. Download the latest accessory brochure for the latest information.
