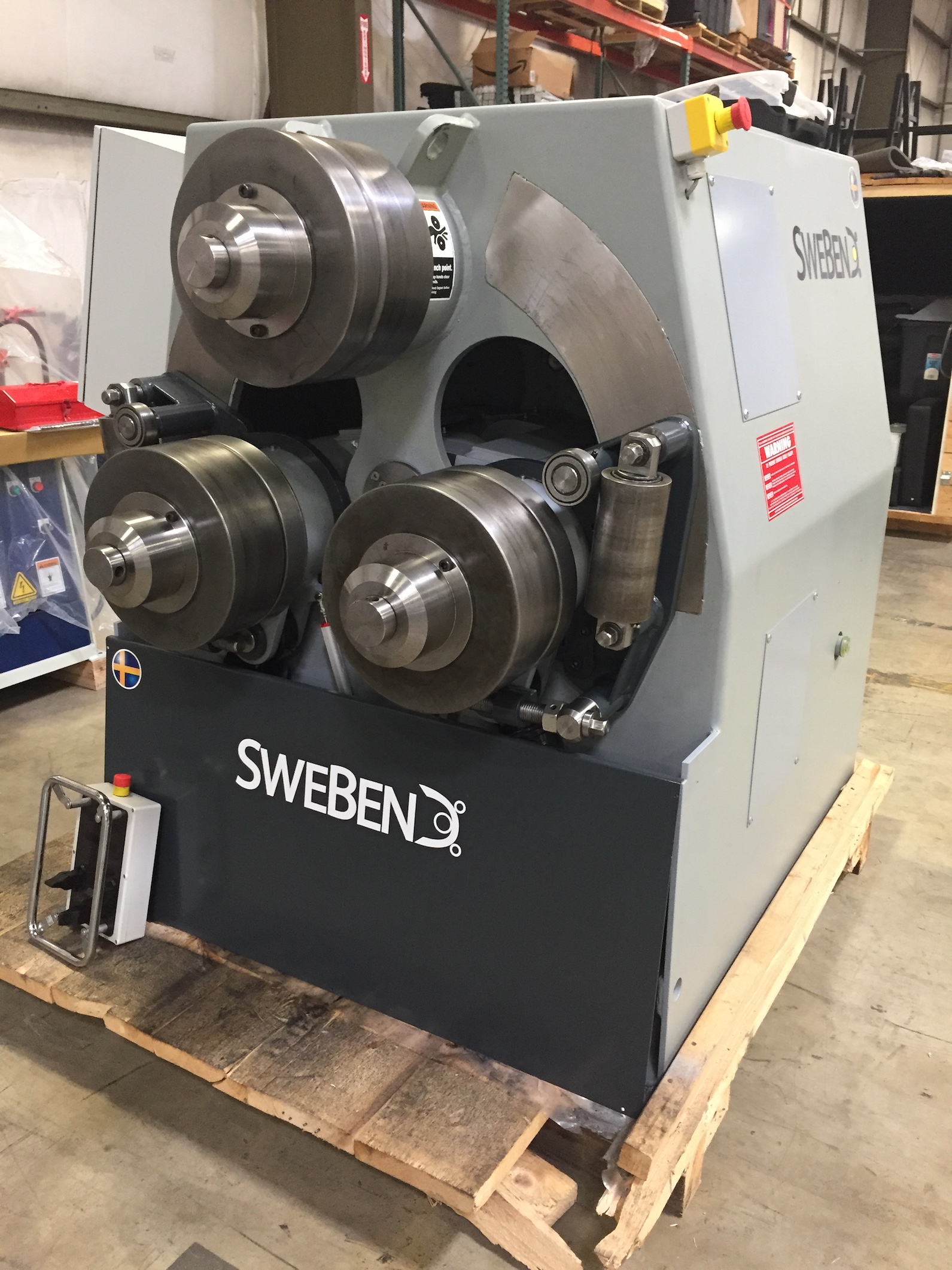

SWEBEND SB3B-105

PRICE UPON REQUEST
Model
SWEBEND SB3B-105
Ships From
Belcamp, MD
Availability
In Stock!
Capacities

Bending Capacity, Standard A-36 Steel with Standard Rolls.
Angle Leg Out:  3-1/2″ x 3-1/2″ x 3/8″
Angle Leg In:  3 ” x 3″ x 3/8″
Flat Bar on Edge:  Up to 5/8” x 5”
 Flat Bar on Flat: Up to 7” x 1-1/2”
Square Bar Stock:  Up to 2-1/2” square (may require additional spacers for maximum sizes)
Bending Capacity, Standard A-36 Steel with Optional Rolls.
  Pipe:  Up to 4” Schedule 40
 Hollow Structural Tubing:  Up to 3-1/2” x 3-1/2” x 1/4”
Beams/Channels (Easy Way):  Up to 7″

Standard Rolls for Flat Bar, Angle Iron, T-Bars and Solid Rod. Optional rolls for hollow pipe, beams, channels and other profiles.

Product Features
  • 3-Roll Double Pinch Angle Roll
  • Manual Guide Rolls
  • Wireless Bluetooth Control Unit
  • Digital Readouts for Lower Roll Positions
  • Hydraulic Drive with Variable Speed
  • Dual execution (Vertical or Horizontal Rolling)
  • Standard Rolls for Flat Bar, Angle Iron, T-Bars and Solid Rod
  • Compatible with Roundo R-4, R-4S Tooling
  • 1 Years Parts and Labor Warranty



Description

No matter if your profile is flat stock, angle iron, beams, T’s, channels or special sections our SB-series enables you to process sections in the most diverse designs and dimensions possible.
Equipped with the strongest bending forces available on the market today, the SB-series forms particularly difficult sections with ease. This is made possible in part through the extremely stable frame construction.

Equipped for the most diverse bending tasks… The SB-series is designed to be easily adaptable to virtually any application or requirement since we can expand the standard SB machine with additional equipment. There is a large selection of labor and time saving accessories available. We can optionally equip the SB machines with a rotating device, units for three-dimensional forming or a bending mandrel for small diameters. We also offer advanced CNC systems for applications that need more than a standard digital readout.

The ideal solution for your bending requirements…
 The performance of a profile bending machine is measured by the resistance of the cross-section of the profiles it can successfully roll which is known as section modulus and is expressed in square inches (IN2). Information about the bending resistance of structural sections can be obtained from manufacturer’s catalogues, handbooks or suppliers. Our advice is to pay special attention to off center sections, as there is often no data about these profiles. The bending resistance of your profiles is the ideal criteria used to specify the correct machine size.

Accessories

Optional Rolls

Round Pipe Rolls – Single or Double Groove.  Hardened Steel or Nylon

Square/Rectangular Pipe Rolls – Two Corner Radii of Customer’s Choosing

I/U Rolls – Beams and Channels

Standard models.

SWEBEND SB3B-65

PRICE UPON REQUEST

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Dual Execution (Vertical/Horizontal), Manual Guide Rolls. **Compatible with Roundo R-2 Tooling**

Capacity: 2″ x 2″ x 5/16″

SWEBEND SB3B-75

PRICE UPON REQUEST

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Dual Execution (Vertical/Horizontal), Manual Guide Rolls. **Compatible with Roundo R-3  and R-3S Tooling**

Capacity: 3″ x 3″ x 5/16″

SWEBEND SB3-85S

PRICE UPON REQUEST

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Dual Execution (Vertical/Horizontal), 6-Direction Independent Hydraulic Guide Rolls.

Capacity: 3″ x 3″ x 3/8″

SWEBEND SB3B-105

PRICE UPON REQUEST

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Dual Execution (Vertical/Horizontal), Manual Guide Rolls. **Compatible with Roundo R-4  and R-4S Tooling**

Capacity: 3.5″ x 3.5″ x 3/8″ Angle

SWEBEND SB3S-105

PRICE UPON REQUEST

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Dual Execution (Vertical/Horizontal), Hydraulic Guide Rolls. **Compatible with Roundo R-4  and R-4S Tooling**

Capacity: 4″ x 4″ x 1/2″

SWEBEND SB3S-140

PRICE UPON REQUEST

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Hydraulic Guide Rolls. **Compatible with Roundo R-5, R-5S, R-52S Tooling**

Capacity: 5″ x 5″ x 1/2″ Angle

New, 3-Roll Hydraulic Section Bending Roll. Digital Readouts for Lower Bending Rolls, Wireless Bluetooth Control Unit, Variable Speed, Hydraulic Guide Rolls. **Compatible with Roundo R-6, R-6S, R-62S Tooling**

Capacity: 6″ x 6″ x 1/2″ Angle
