sunrise AlS Series
Automatic Channel Processing System

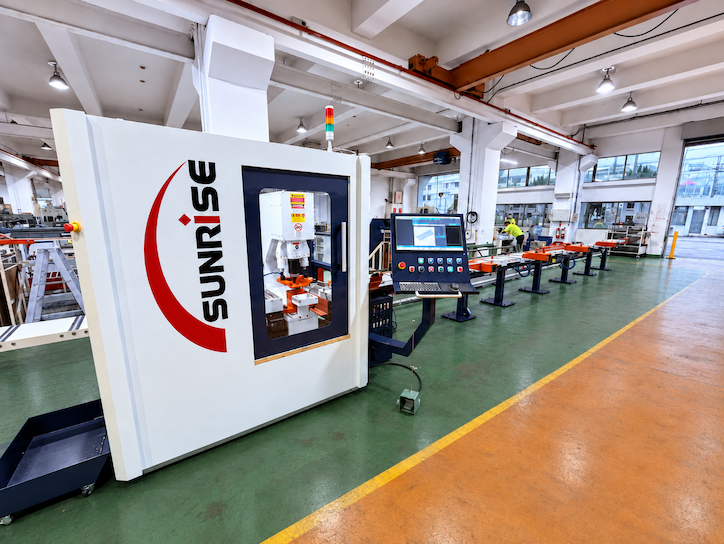

The Sunrise Channel Line System – ACPS – is a versatile and fully automated channel line solution that efficiently processes channel webs from C3 to C6 without the need to change blades! It offers punching, shearing, and scribing capabilities, enhancing accuracy and productivity in metal fabrication applications.
Operation: The operator loads the channel onto the all-steel in-feed rollers; the system engages and pneumatically clamps the material, measures the length, and then processes the material by automatically punching the web and shearing (with a 1/2″ slug) to length utilizing the industrial strength rack and pinion drive system. When the bar is complete, the system will automatically retract, drop the scrap (as little as 6″), and move to the load position to repeat the process.
Capacities:
- Shearing – 160 Ton Shear:
- Channel: 3″ – 6″ | C3-C6 | The quick-adjustment tool allows your operator to change sizes on the fly with the same blades!
- Punching – Single High-Speed 38-Ton Punching Cylinder on Linear Rails
- Two independent punches – each programmable for web-only punching up to 1.5″ capacity and full tonnage.
- 3-4 second operation cycle time
- Positioning Speed: Up to 50′ per Minute – Variable Speed
- Accuracy: +/- 0.006″/ Foot
- Rack and Pinion In-Feed Length: 20′ Standard – Expandable to 50′ with machined steel tubes.
Industries and Applications:

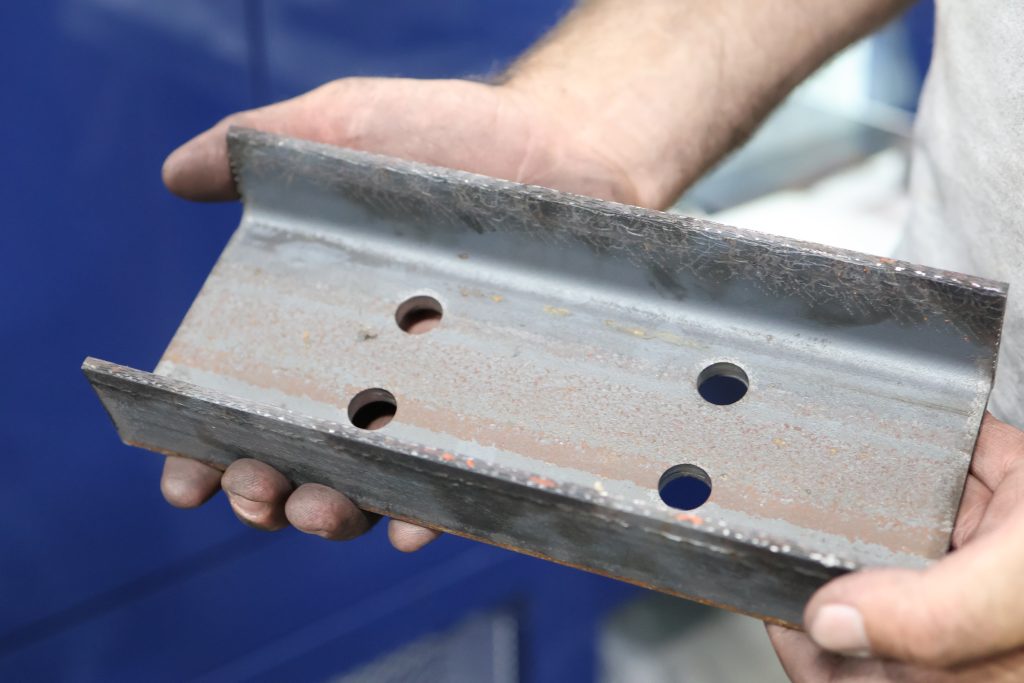

- Channel clips, brackets, bracing bars, and more
- Tower builders, track and rail
- Truck Chassis, lawnmowers
Get to know the ACPS Series
Standard Features

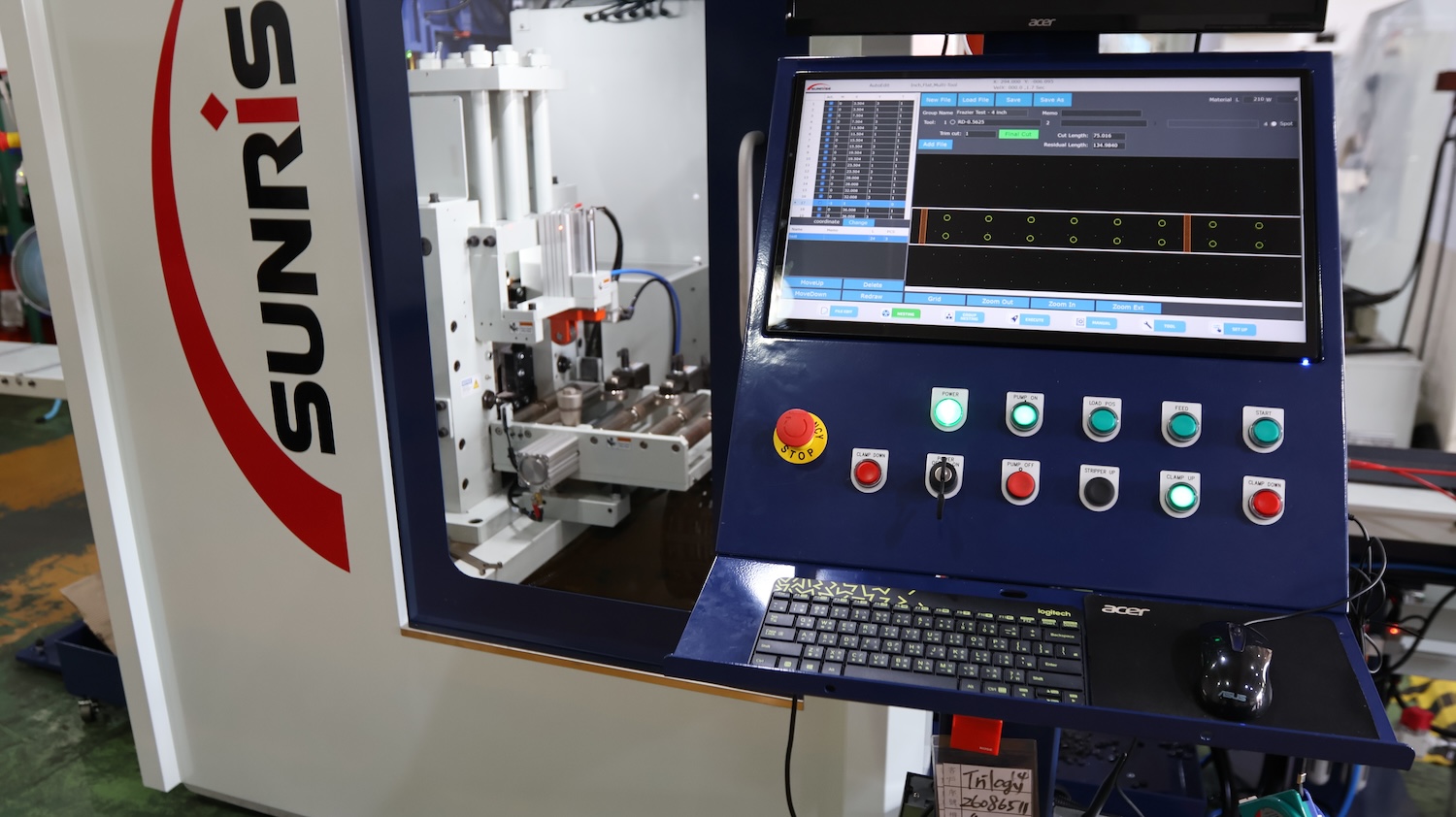

- Touch-Screen Windows Controller featuring multi-program memory, nesting ability, multiple pattern templates, DXF/NC1 Import, TeamViewer Remote Diagnostics, WiFi, USB
- 20′ Standard In-Feed with Rack-and-Pinion Drive System, expandable up to 50′
- Hydraulic punch stripper, hydraulic hold-down for shearing, and pneumatic hold-downs for in-feed

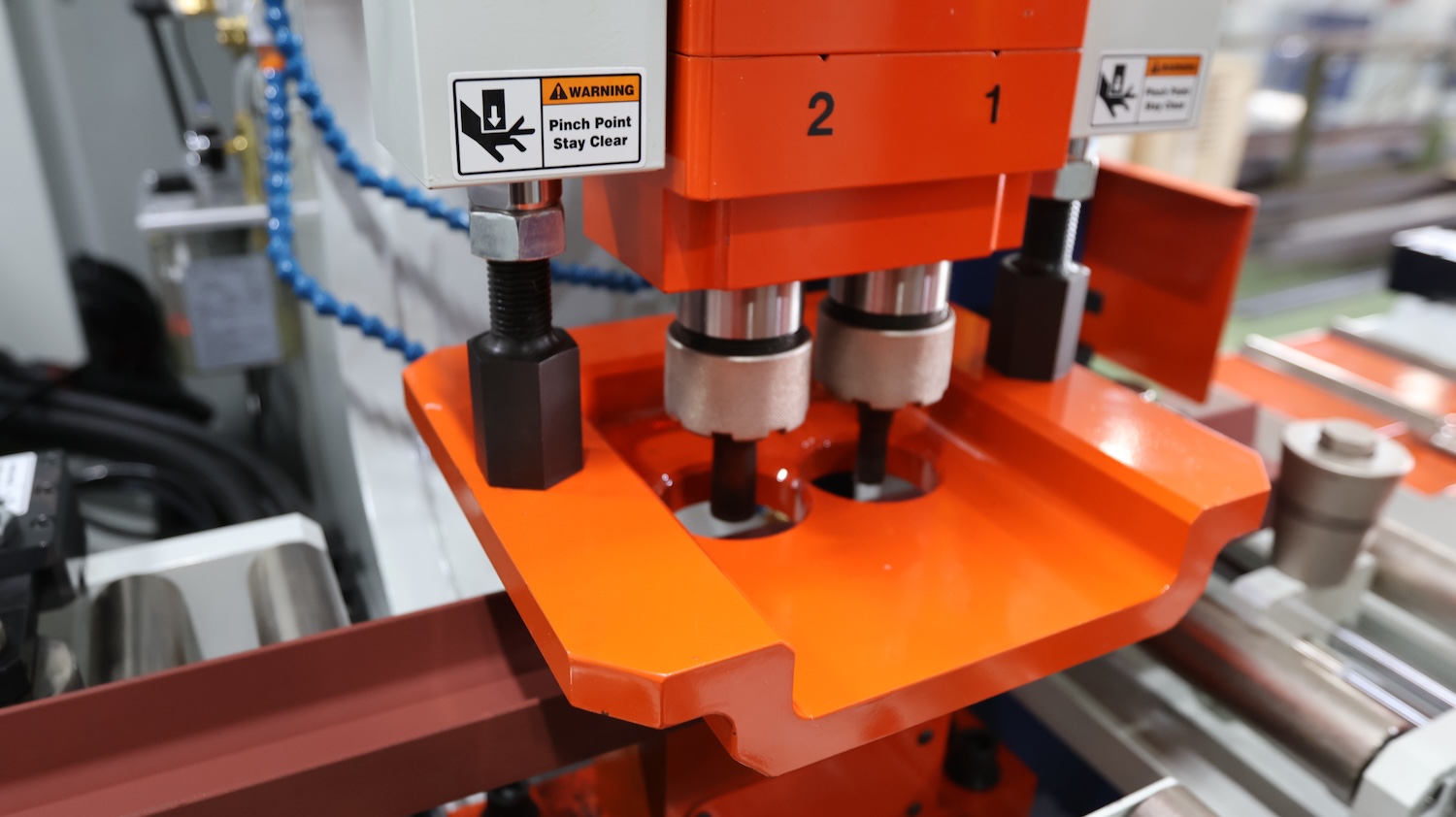

- Dual Punch Feature – Two independent punches, up to 1.5″ capacity.

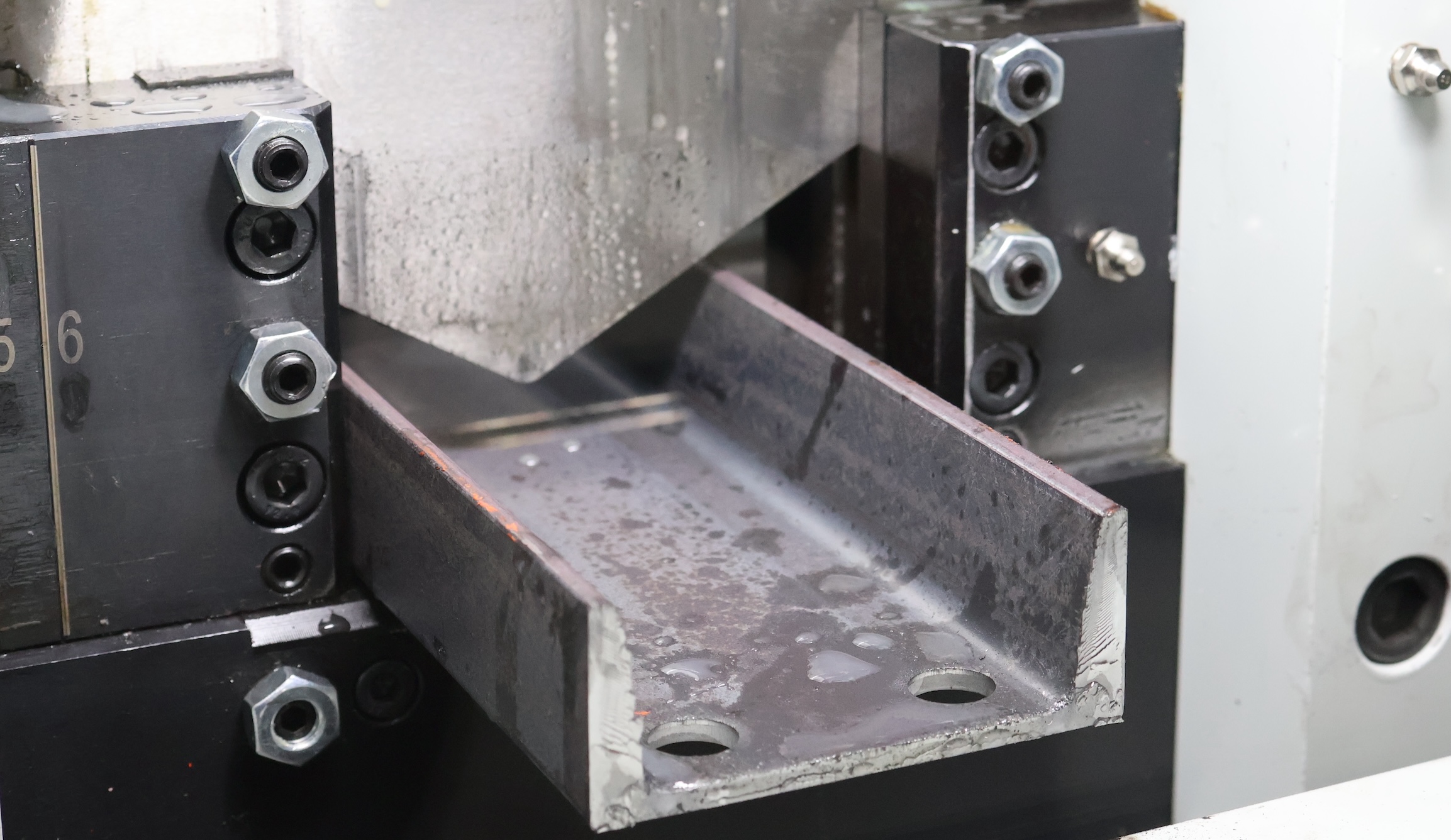

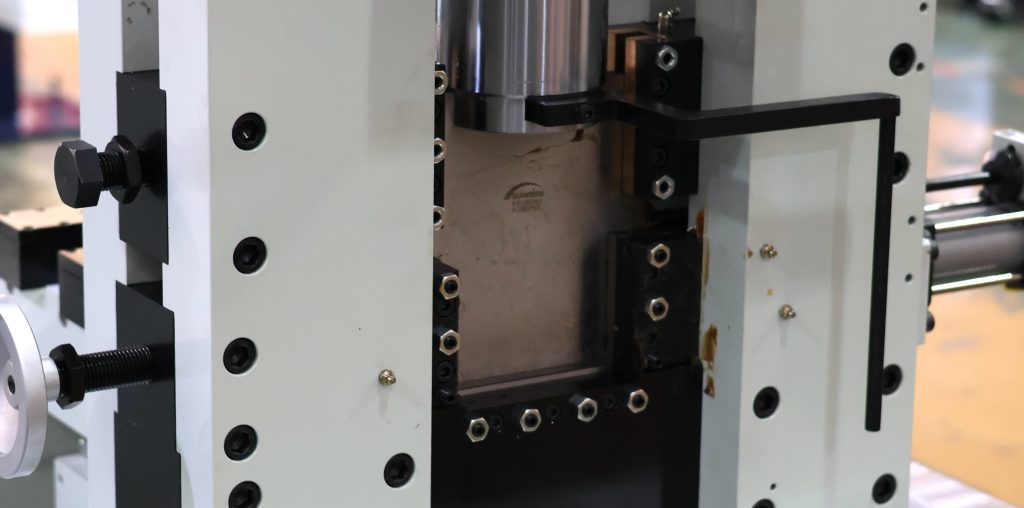

- Rapid Shear System allows quick transitioning from C3-C6 channel, and only 0.50″ slug loss per cut, featuring multi-sided blades, adjustable blade gap

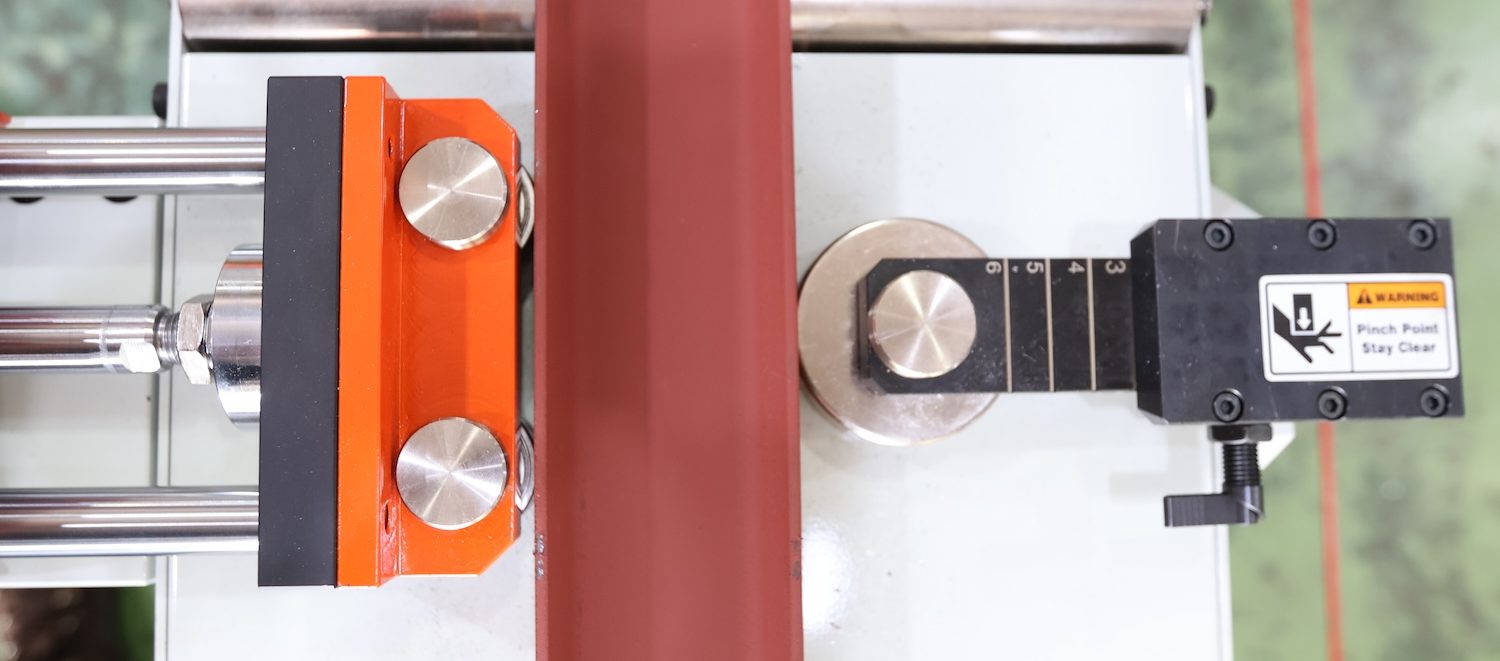

- Automatic Pneumatic Material Clamping and Squaring
- Fully enclosed punching and shearing operations for operator safety, as well as interlocked doors, and optional light curtains.
- Integrated cooling system with hydraulic oil cooler and filter, multi-point camera safety system, and more!
| Model | Capacity | Description | Price | Status | Info | |
|---|---|---|---|---|---|---|
 |
Sunrise ACPS – Channel Processing System Capacity: Channel Processing Line | 3″ – 6″ Channel | Dual 1.5″ Punch Capacity | 40′ Rack and Pinion System |
Channel Processing Line | 3″ – 6″ Channel | Dual 1.5″ Punch Capacity | 40′ Rack and Pinion System | New, Channel Processing System, 40′ Rack and Pinion In-Feed, 3″ – 6″ Capacity, 38-ton High-Speed Punching Cylinder, 180-Ton Shearing Cylinder, Dual-Punch Heads featuring 2 independent Punches with 1.5″ Capacity, and more! |
$279,500 – 40′ System | In-Stock! Demo at Fabtech Booth A-4350! |
Get a Quote |
