sunrise AlS Series

Automatic Angle Processing System

The Sunrise Angle Line System – ALS – is a versatile and fully automated angle line processing system that efficiently processes angles and flat bars up to 6″ x 6 x 1/2″. It offers punching, shearing, and dot-peen marking capabilities, enhancing accuracy and productivity in metal fabrication applications.

Operation: The operator loads the angle onto the all-steel in-feed rollers; the system engages and pneumatically clamps the material, measures the length, and then processes the material by automatically punching both legs of the angle and shearing (without a slug) to length utilizing the industrial strength rack and pinion drive system. When the bar is complete, the system will automatically retract, drop the 6″ scrap, and move to the load position to repeat the process.

Test1
Dot Peen System

Capacities:

  • Shearing – 170 Ton Shear:
    • Angle: 2″ x 2″ x 1/4″ up to 6″ x 6″ x 1/2″ – No Slug Loss –
    • Capable of 1″-3″ x 3/16″ Angle with Special Tooling
    • Optional Flat Bar: 2″ x 1/4″ up to 6″ x 1/2″  – No Slug Loss
  • Punching – Dual 60 Ton Punch Cylinders:
    • 1.5″ up to the rated tonnage – Material – 65,000 PSI Tensile.
    • 2 independent punches per leg
    • Minimum 1″ gauge line or 0.75″ with special tooling. Uneven leg angle is supported – the gauge line is based on the taller leg.
  • Positioning Speed: Up to 50′ per Minute – Variable Speed
  • Accuracy: +/- 0.004″/ Foot
  • In-Feed Length: 20′ Standard – Expandable to 50′. (Manual outfeed sections available)
Let us customize a machine, just for you

Industries and Applications:

  • Angle clips, brackets, bracing bars, and more
  • Tower builders, track and rail
  • Truck Chassis, lawnmowers

Get to know the ALS Series

Standard Features
  • 15″ Touch-Screen Windows Controller featuring multi-program memory, nesting ability, multiple pattern templates, DXF/NC1 Import, TeamViewer Remote Diagnostics, WiFi, USB
  • 20′ In-Feed with Rack-and-Pinion Drive System, expandable up to 50′
  • Hydraulic punch stripper, hydraulic hold-down for shearing, and pneumatic hold-downs for in-feed

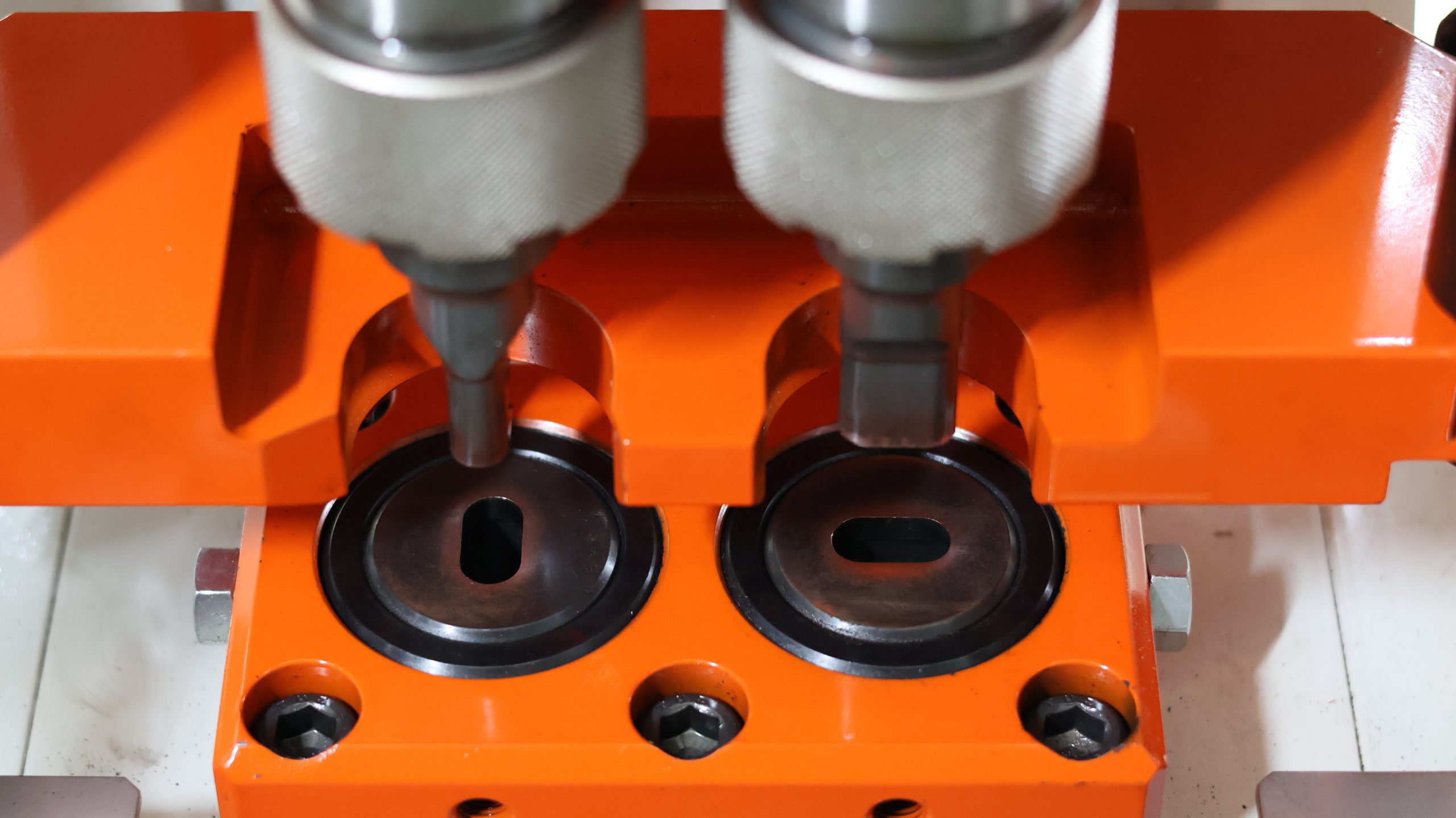

  • Dual Punch Feature – Two independent punches, up to 1.5″ capacity, per leg of angle with tandem 66-ton punch cylinders
  • No slug loss shear-cut featuring multi-sided blades, adjustable blade gap
  • Automatic Pneumatic Material Clamping and Squaring
  • Fully enclosed punching and shearing operations for operator safety, interlocked doors.
  • Integrated cooling system with hydraulic oil cooler
Optional Features
  • Stamping/Dot Peen Marking Station
  • Flat-bar processing
  • Light Curtain Safety System
  • Automatic lubrication system with programmable spray pattern.
  • Auto-Loader for Angles

Not sure which machine is right for you? Contact our experienced team today.

Available models

Model Capacity Description Price Status Info
Sunrise ALS 1506D – Angle Line System
Capacity: Angle Processing Line | Quad -Punches | 6″ Angle | 6″ Flat Bar | Up to 50 Feet In-Feed | Rack and Pinion System
Angle Processing Line | Quad -Punches | 6″ Angle | 6″ Flat Bar | Up to 50 Feet In-Feed | Rack and Pinion System

New, Angle Processing System, 20′ Rack and Pinion In-Feed, 6″ Angle, 6″ Flat Bar, Dual 66 Ton Cylinders, Dual-Punch Heads featuring 4 Punches, Dot-Peen Marking and more!

$229,950.00 – 20 Foot system | $264,900.00 – 40 Foot System
In Stock!
Get a Quote
