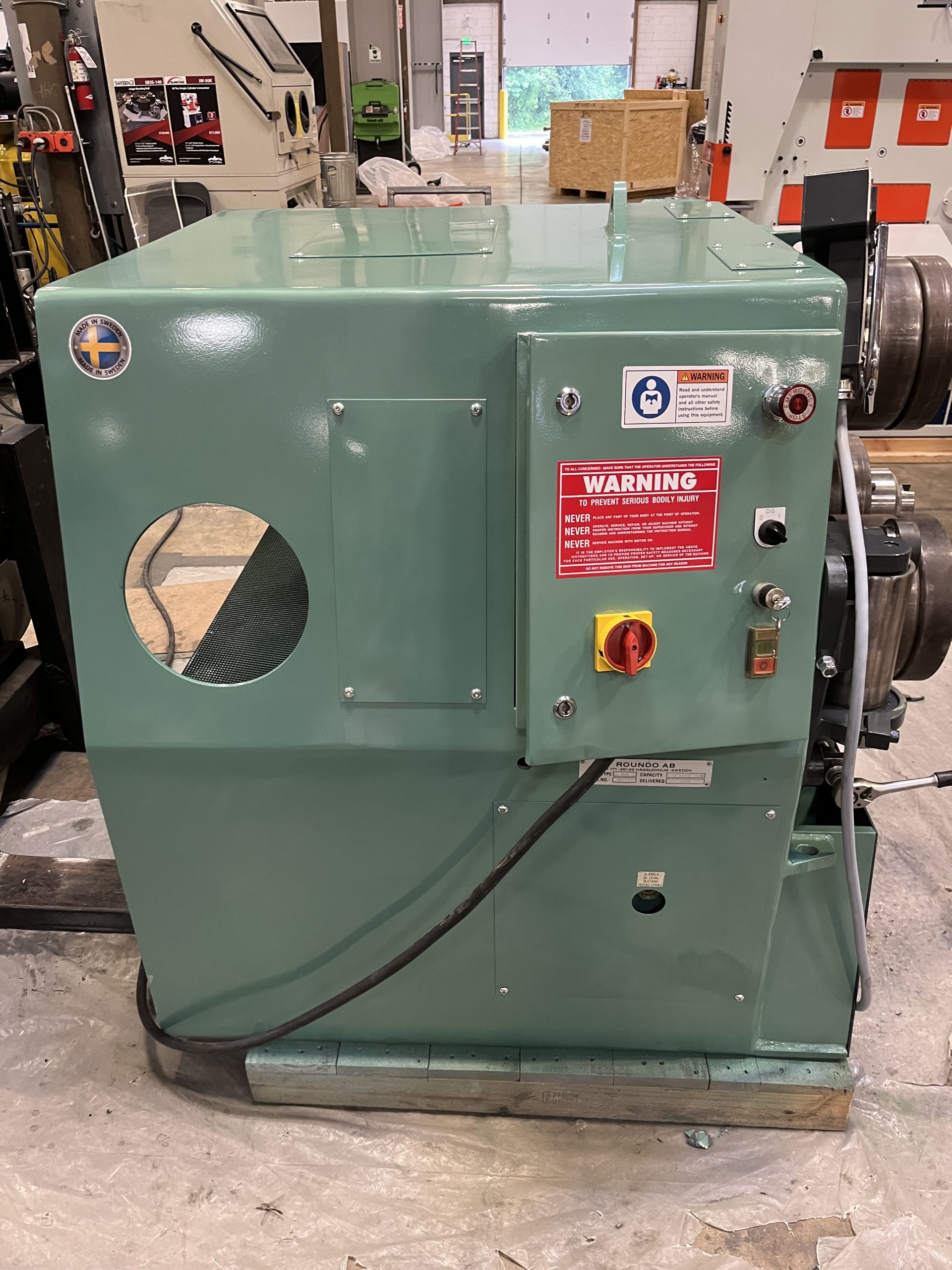

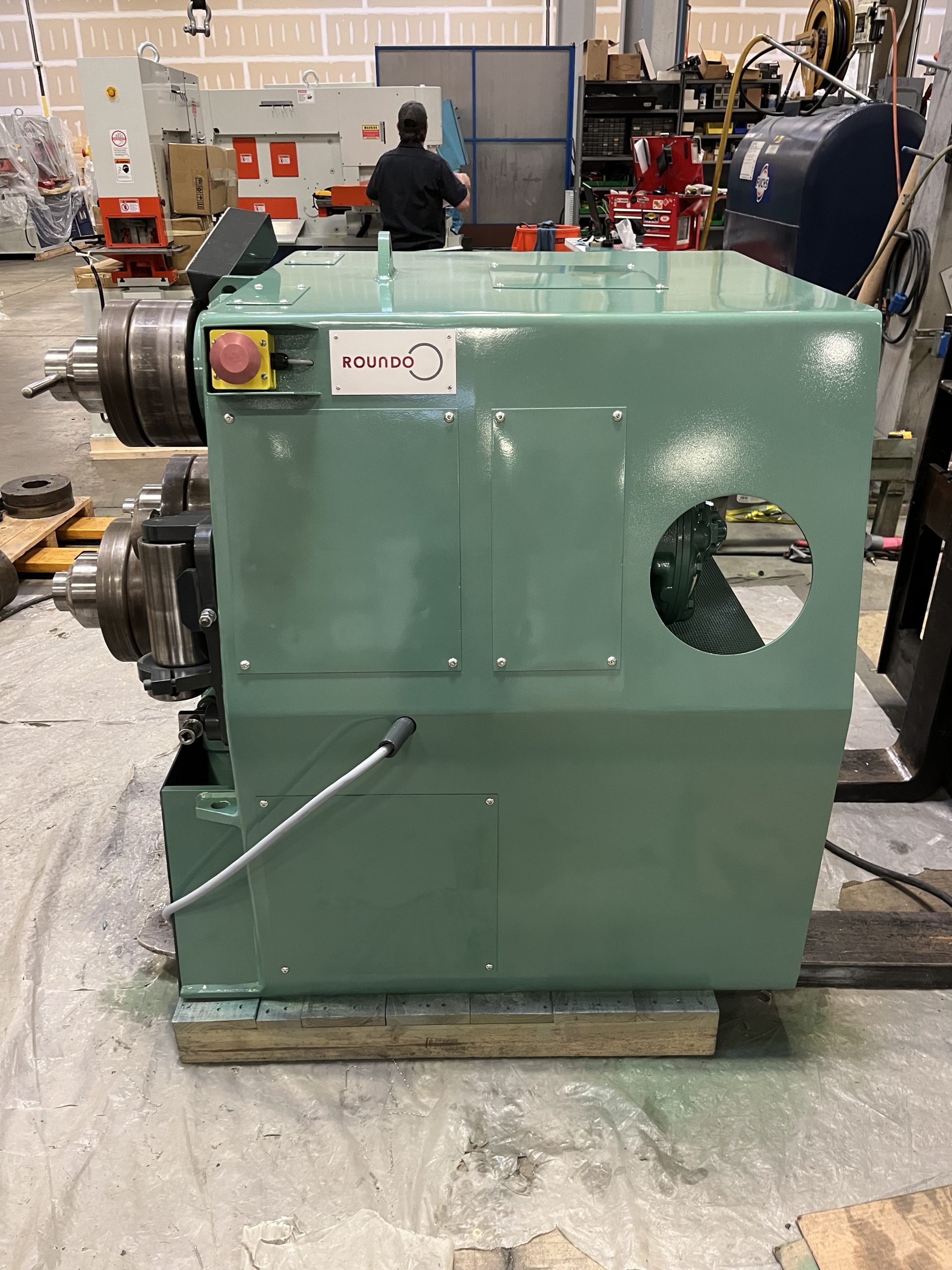

ROUNDO R-4H – REFURBISHED

Bending Capacity, Standard A-36 Steel with Standard Rolls.
Angle Leg Out:  3-1/2″ x 3-1/2″ x 3/8″
Angle Leg In:  3″ x 3″ x 3/8″
Flat Bar on Edge:  Up to 3/4” x 4”
 Flat Bar on Flat: Up to 8” x 1-3/16”
Square Bar Stock:  Up to 2” square (may require additional spacers for maximum sizes)
Bending Capacity, Standard A-36 Steel with Optional Rolls.
  Pipe:  Up to 3” Schedule 40
Hollow Structural Tubing:  Up to 3” x 3” x 3/16”
Beams/Channels (Easy Way):  Up to 6″

Standard Rolls for Flat Bar, Angle Iron, T-Bars, Solid Rod.   Optional rolls for hollow pipe and other profiles.

• 3-Roll Double Pinch Angle Roll
• Manual Guide Rolls
• Wireless Bluetooth Control Unit
• Digital Readouts for Lower Roll Positions

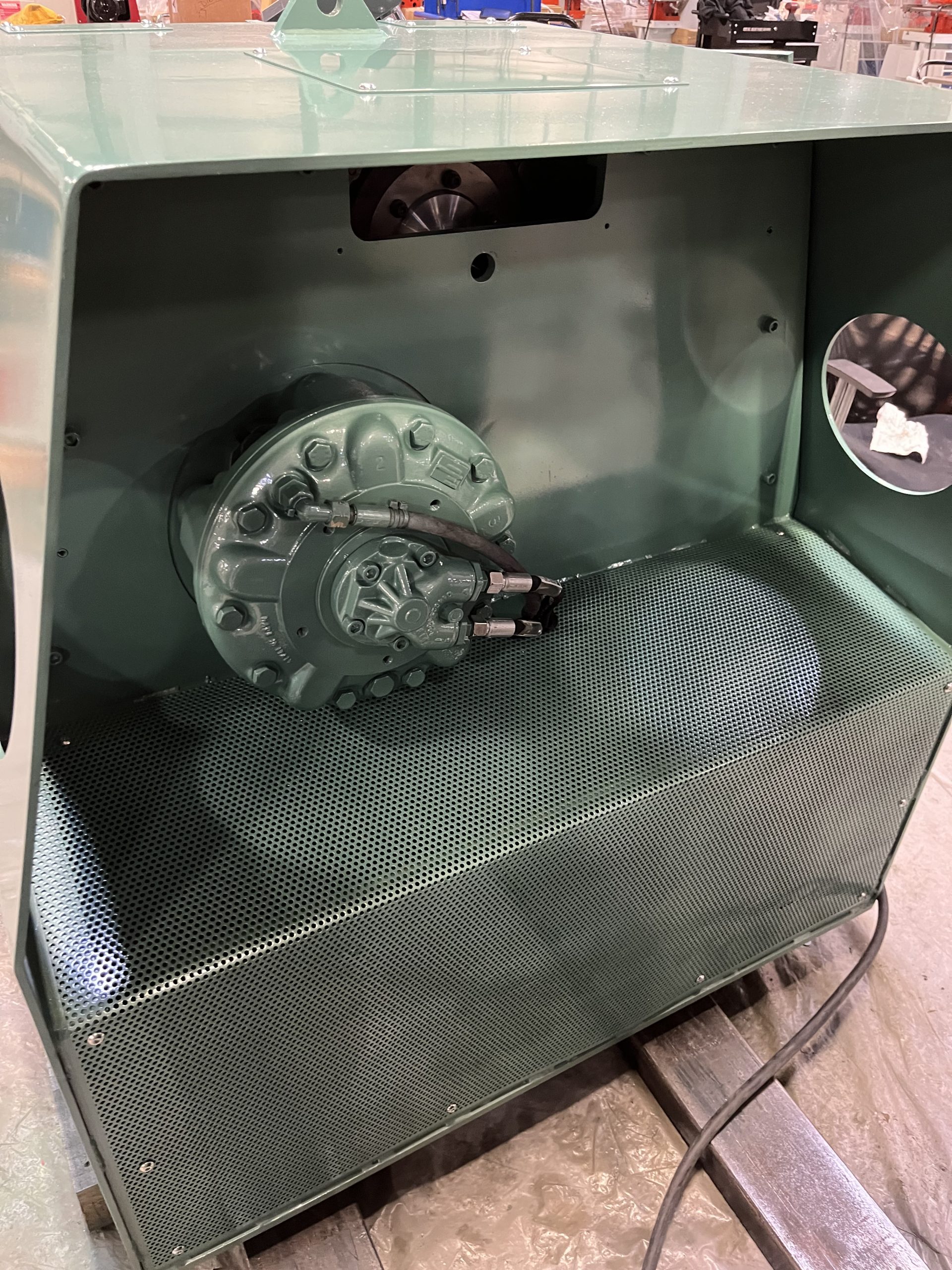

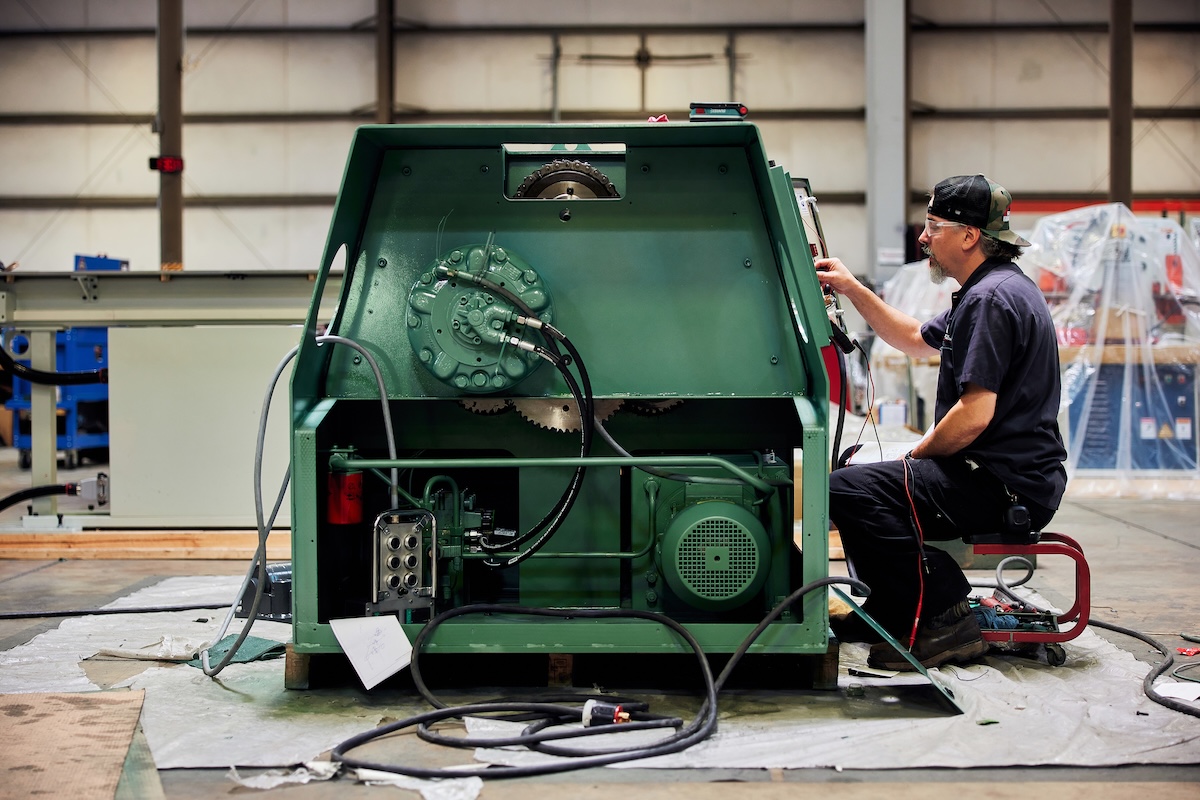

• Hydraulic Drive with Variable Speed
• Standard Rolls for Flat Bar, Angle Iron, T-Bars, Solid Rod

Optional Rolls

Round Pipe Rolls – Single or Double Groove.  Hardened Steel or Nylon

Square/Rectangular Pipe Rolls – Two Corner Radii of Customer’s Choosing
