Sunrise IW-110SD – Semi-CNC Hydraulic Ironworker

Sunrise IW-110SD Capacities

Punch: 110 Tons – 1.125″ in 1″

Throat: 20″

Angle Shear: 6″ x 6″ x 1/2″

Plate Shear: 25″ x 9/16″ – 14″ x 1″

Notcher: 2″ x 3-1/2″ x 3/8″

HP: 15

Power Requirements: 3 Phase | 220/480

• Semi-Automatic CNC Dual-Cylinder – Dual-Operator – Ironworker
• Hydraulic Punch Stripper up to 2″
• Hydraulic Angle and Plate Shear Hold Downs
• CNC Plate Shearing System with touch-screen controller, cut list, and more
• 120″ x 16″ Table
• 15″ Touch-Screen controller, offline software, DXF/NC1 Import


  SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand:

  • 40″ Touch-and-Cut Electric Back Gauge – Can use with the CNC Shear
  • Machined Notcher Gauge Table with X-Y Positioning
  • LED Magnetic-Base Work Light
  • Set of 11 Punches & Dies from American Punch –  3/8″ – 1-1/2″
  • Reversible Structural Die Block for up to 2″ diameter hole capacity including overhang for angle and channel flange punching
  • Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
  • Full tank of Hydraulic Oil
  • HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine.
  • Extensive List of Optional Equipment: Accessory PDF

  SUNRISE offers one of the widest ranges of CNC options today, including semi and fully-automatic punches, automatic shearing, and new complete processing systems.

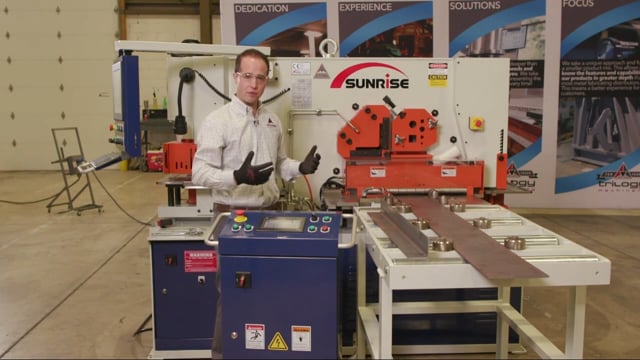

The Semi-Automatic CNC positioning tables from SUNRISE are plate and angle positioning systems with touch-screen interfaces. The CNC positioning table is available as a factory-installed option on any dual-cylinder ironworker or punching machine with a 20” or larger throat depth.

The operation and programming are CNC-controlled using a pendant-mounted controller featuring simple programming and a virtually indestructible design. The operator simply positions the material against the CNC-controlled X and Y stops and initiates the punch program, virtually eliminating any layout time!

SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the integrated spin-on return line filter, bronze bushings and gibings, multi-sided blades and the highest quality components as well a standard two year parts warranty.

Sunrise offers a complete list of accessories and other attachments for your ironworker. Download the latest accessory brochure for the latest information.
