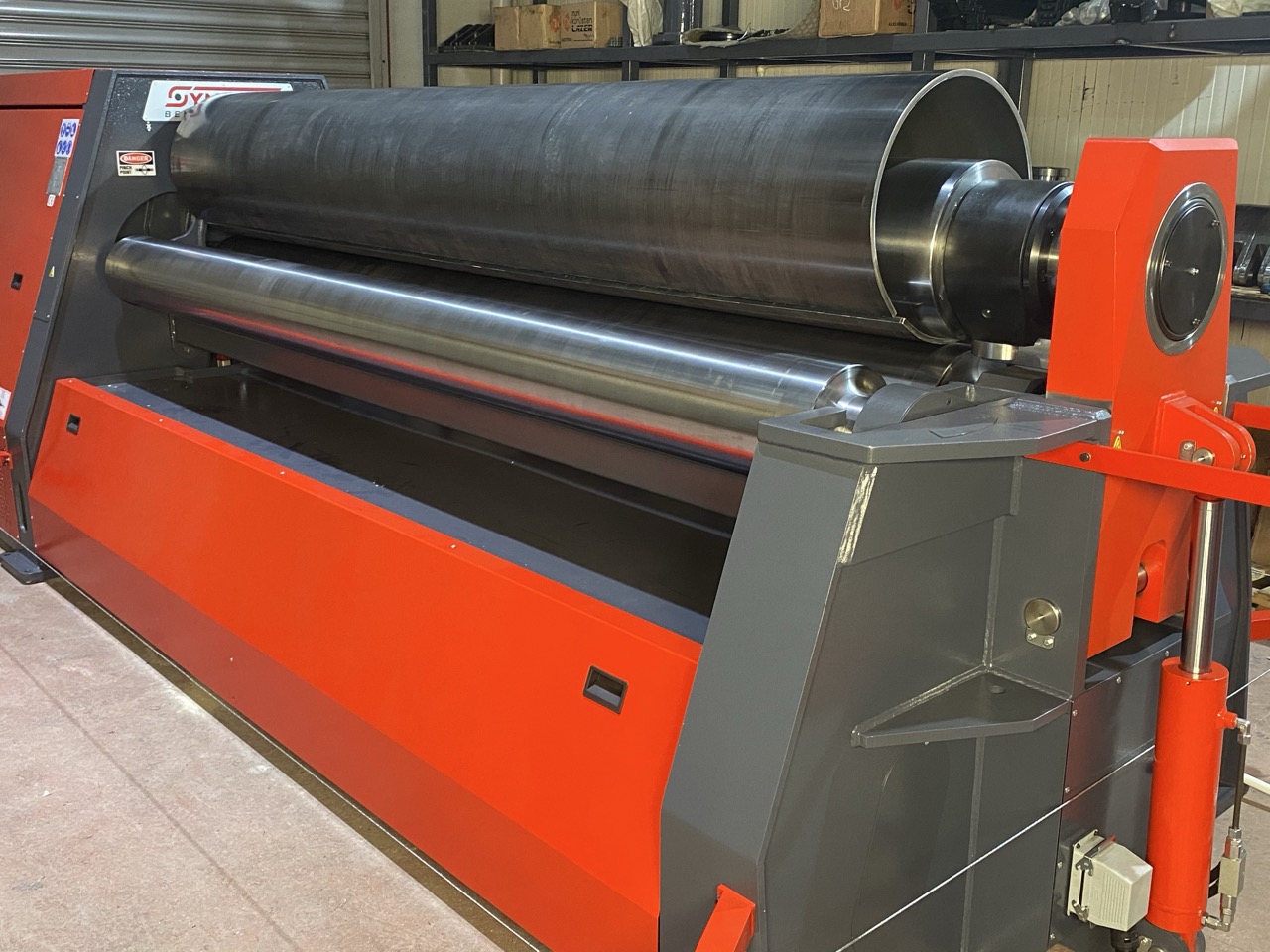

SYNERGY AH4-10/13

Capacities in carbon steel with 36,000 PSI yield strength:
     Pre-bending capacity  10′ x 1/2″ to 1.5x top roll diameter
Circular rolling capacity 10′ x 5/8″ to 3x top roll diameter
Top roll diameter – 12.99″
Side rolls diameters – 9.45″
Bending roll surface – 120″
Rolling Speed – Two speed – 3’/16′ per minute
Motor – 25 HP
Machine dimensions – Approximately 209″ x 65″ x 63″
Machine weight – Approximately 25,520 Lbs

• Machine frame is fabricated from high strength and stress relieved carbon steel

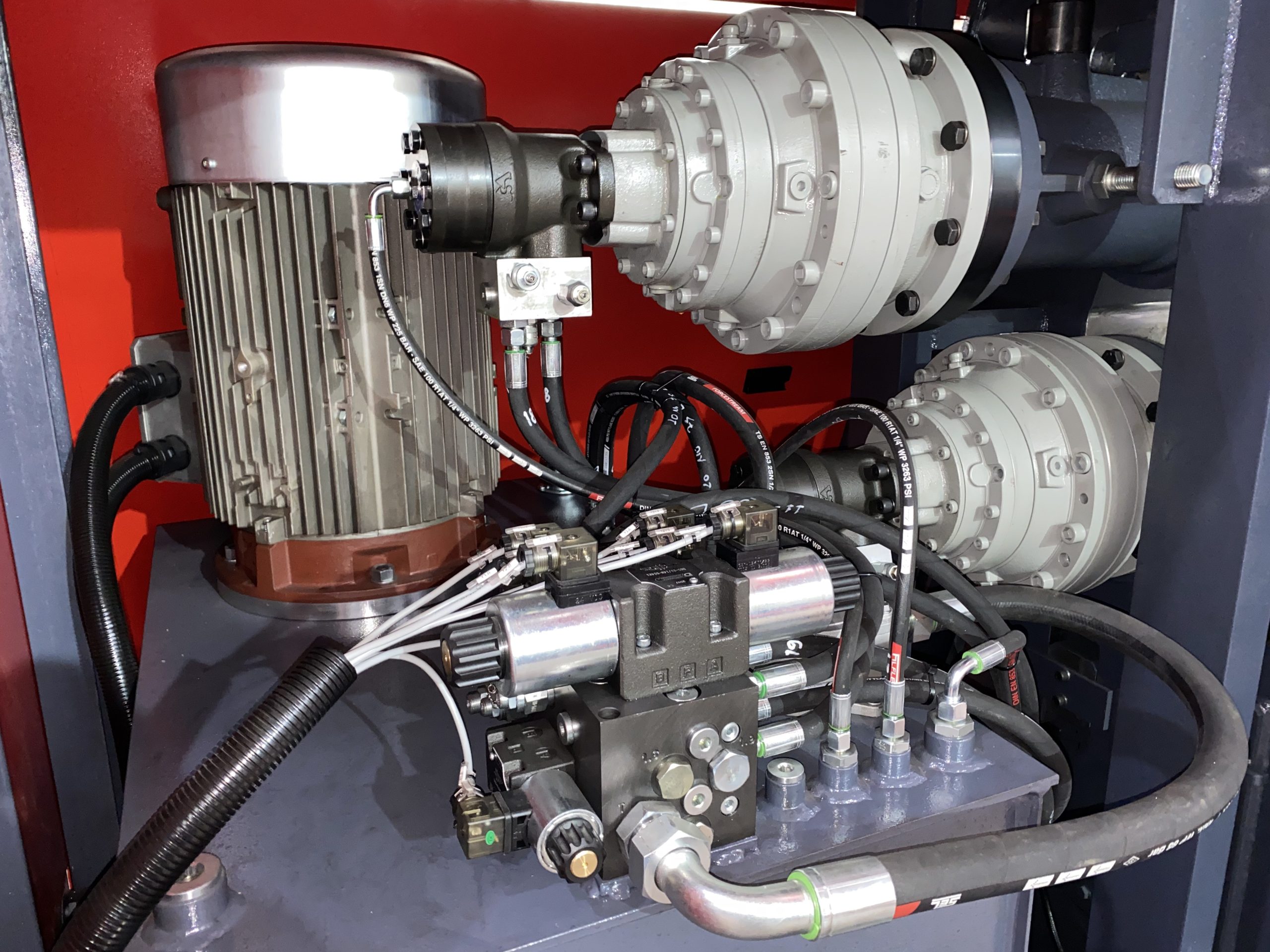

• Hydraulic drive on top and lower roll via hydraulic motors and planetary gear reducers, one for each roll
• Dual rotation speed, controlled by selector switch on control console
• PLC Electronic balancing system
• Digital readouts show the position of the side bending rolls
• Cone bending attachment
• Induction hardened rolls 54-56 HRc
• Polished roll surface
• Spherical roller bearings on all journals
• Hydraulic drop end for easy part removal

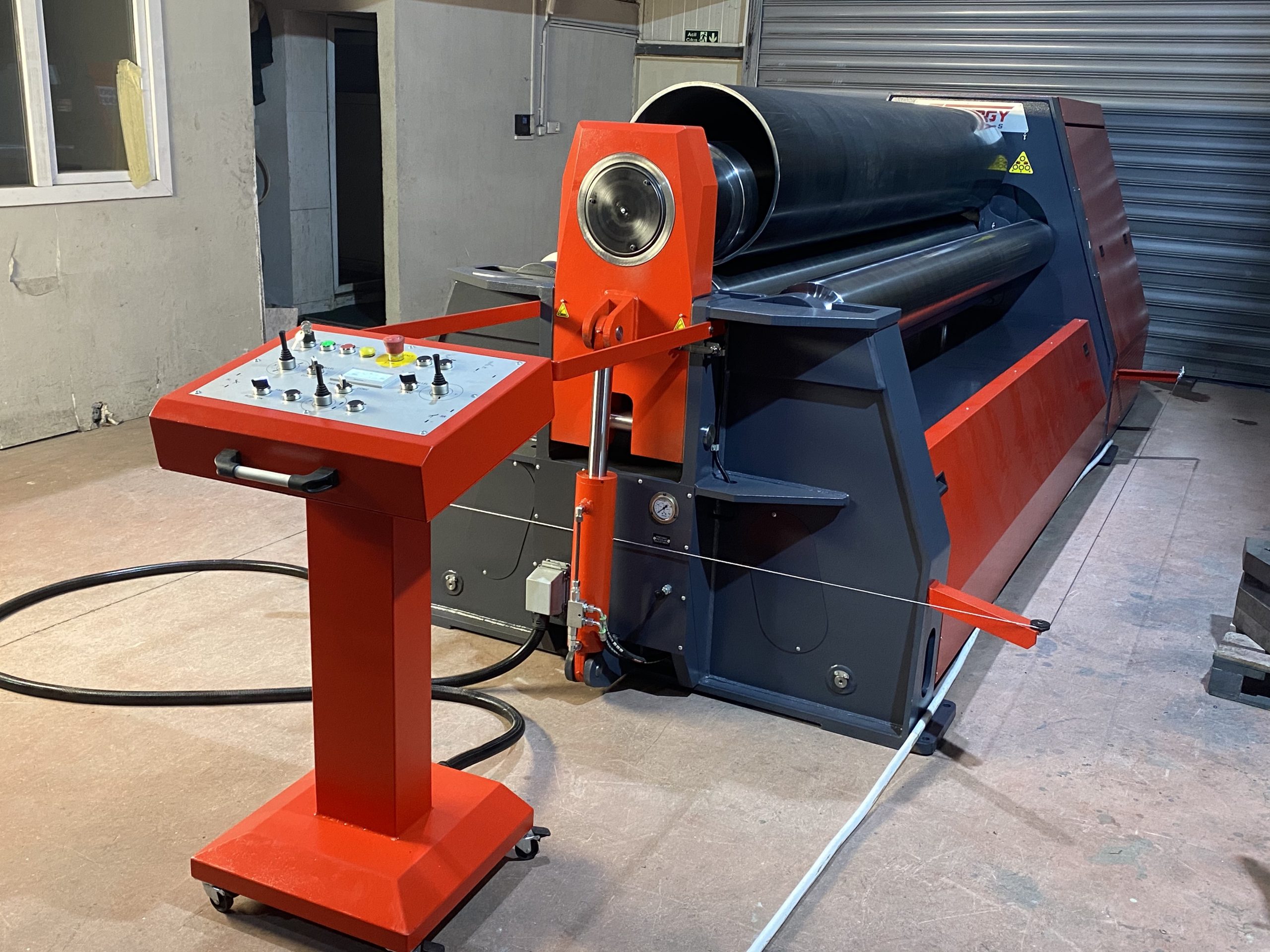

• Remote console on wheels with touchscreen PLC and push buttons
• Complete electrical equipment for 220V or 480V, 3phase, 60Hz (Other voltages on request).
• Safety cable emergency stops
• Basic tool set and instruction manuals for service & maintenance
• 2 Years Parts and 1 Year Labor Warranty

SYNERGY AH4 SERIES HYDRAULIC PLATE ROLLS

All Synergy AH4 Series plate rolls include the following at no additional charge.

– Hardened and ground rolls

– Cone bending attachment

– PLC Control w/ Digital Readouts

– Fully hydraulic operation

– Two speed selectable drive

– Full drive torque throughout the speed range

– High quality and easily serviceable components

– Pre-Bending Capacity rated at 1.5X the top roll

– 2 Year Parts, 1 Year Labor warranty

– Owner’s Manual, Tool Kit, Basic Operation Video

– Lifetime free technical support by phone or email

Optional

Top Support

Side Supports

Variable Speed

Ask us for more details!
