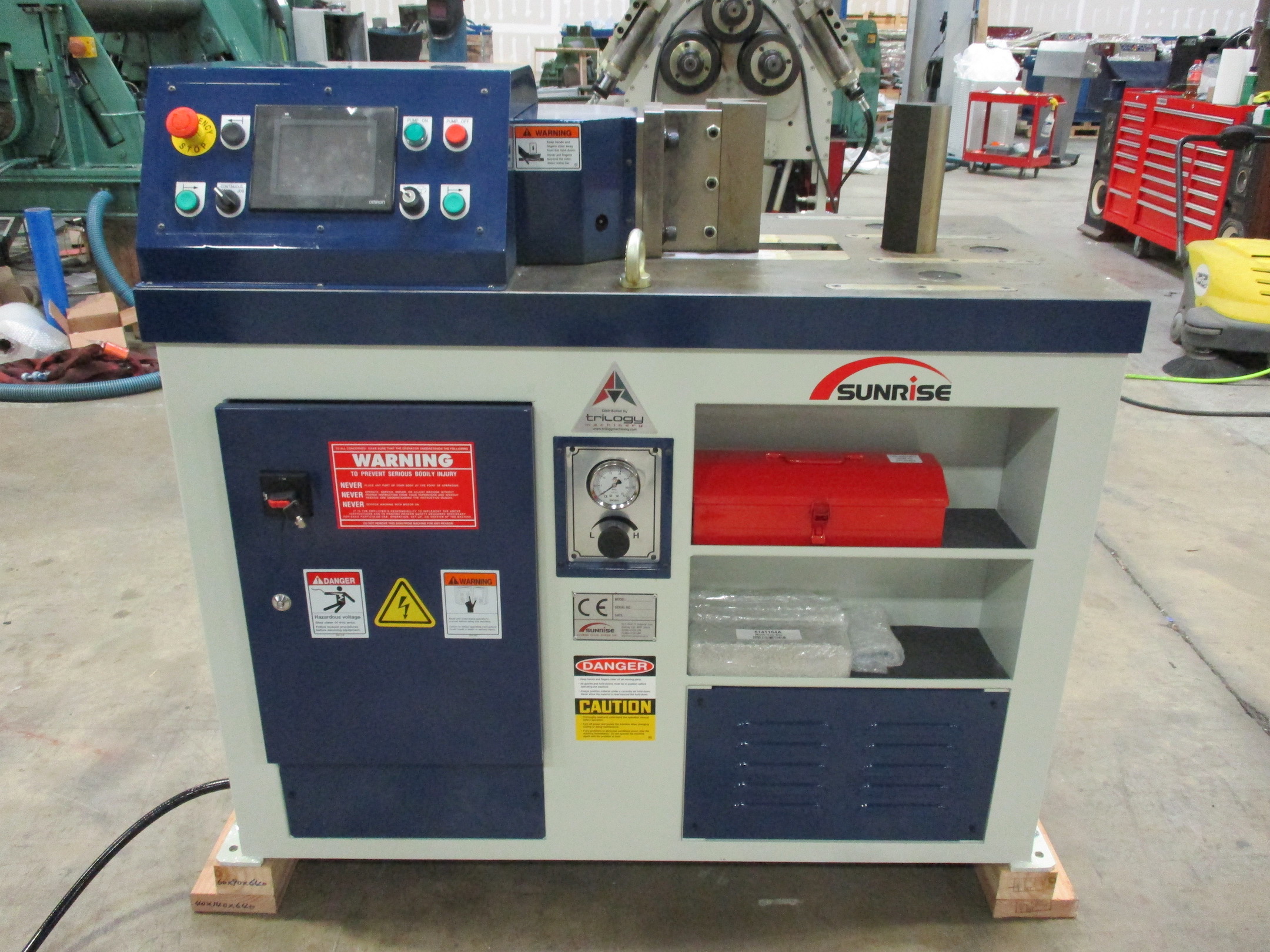

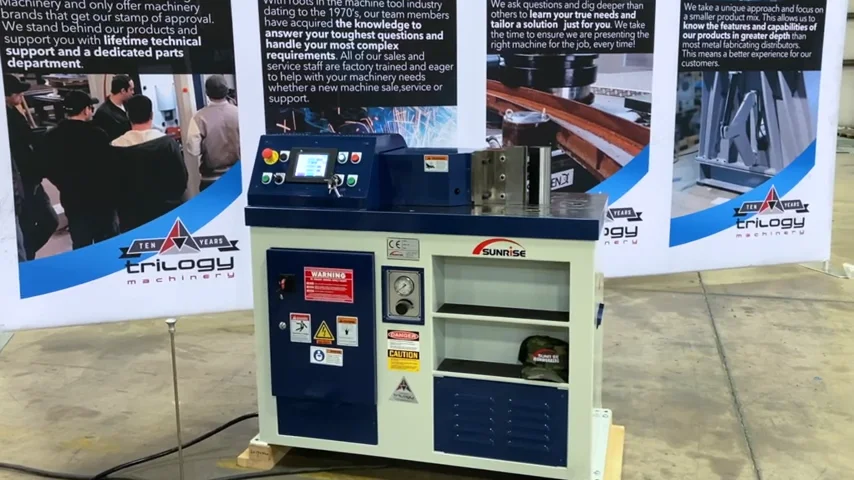

SUNRISE HBM-45 – Horizontal Bending Machine

$22,995.00
Model
SUNRISE HBM-45
Ships From
Belcamp, MD
Availability
On Order
Capacities

Cylinder: 45 Tons

Stroke: 10″

Forward Speed: 0.52″/sec

Backward Speed:  0.79″/sec

HP: 5

Power Requirements: 3 Phase | 220/480

Machine Size: 2275# – 52″ x 25″ x 47″

Product Features
  • 45 Ton Ram
  • 10″ Adjustable Stroke
  • Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
  • Touch-Screen Controller with 50 Program Memory – 10 Bends per Program
  • Two-hand Control or Locked Foot-Pedal
  • Machined One-Piece Top Design – Cylinder Mounted on Top
  • Multiple Machined Holes for Additional Tooling

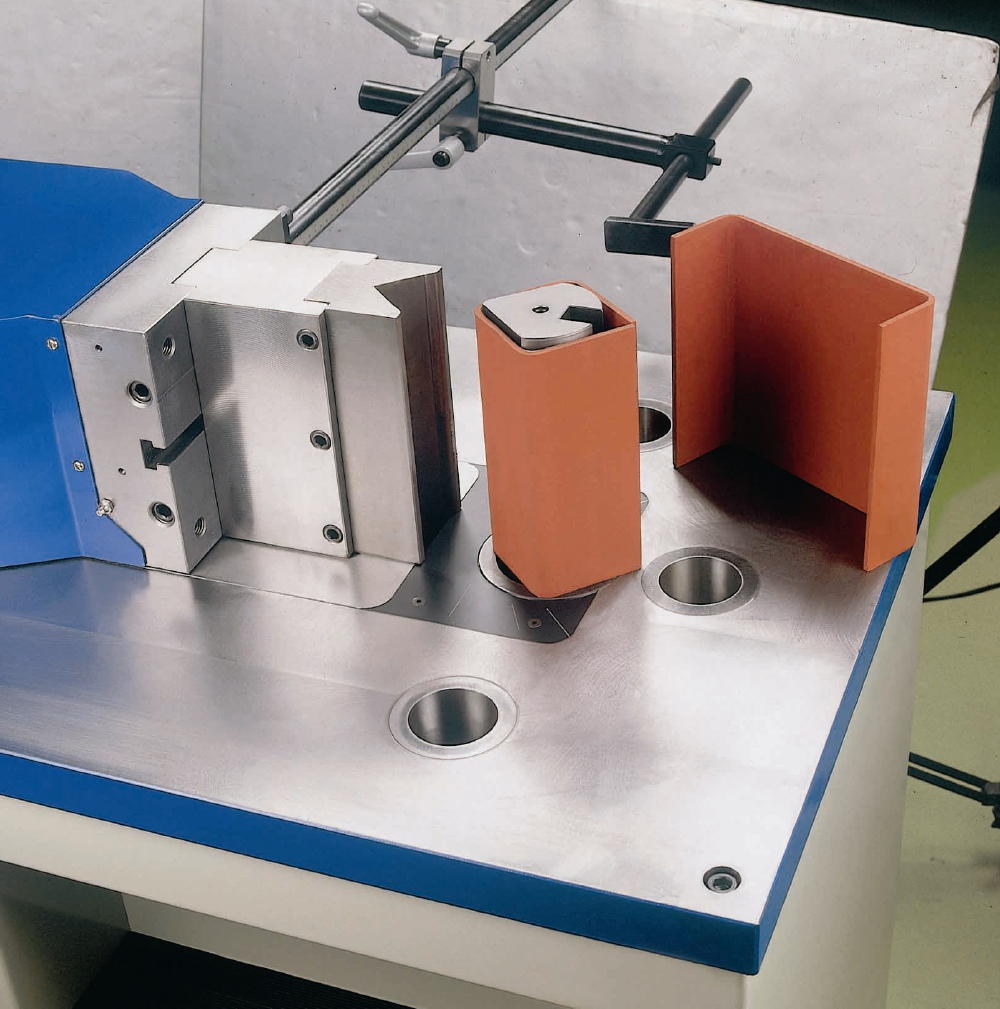

  • Includes 3″ Single-Vee Die and Bending Punch
  • 2-Year Parts Warranty
Description

The SUNRISE hydraulic bending machines, available in either 45 or 82 tons, offer a wide range of tooling for different bending operations. Custom tooling is also available.

SUNRISE horizontal bending machines (HBM) feature:

  • Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
  • Programmable touch screen controller – Standard
  • Jog mode for tooling alignment and programming
  • Name-brand electric and hydraulic components ensure machine reliability
  • CNC machined one-piece solid table design
  • A wide range of standard and custom tooling is available

A manual back gauge is included for accurate positioning.

Both HBM models feature a standard programmable touch-screen controller with 50 program memory.

Trilogy Machinery offers 100% factory-authorized service and support and a full stock of spare parts and accessories in our northern Baltimore Location.

Standard models.

New, Horizontal Bender, Programmable Controller, Manual Back-Gauge, 10″ stroke, 2 year warranty.

Capacity: 45 Tons – 8″ x 1/2″ Capacity

New, Horizontal Bender, Programmable Controller, Manual Back-Gauge, 14″ stroke, 2 year warranty.

Capacity: 82 Tons – 12″ x 1/2″ Capacity

SUNRISE HBM CNC

$12,950.00

1 or 2m CNC Back Gauge for the Sunrise HBM-45 or HBM-82.

Capacity: HBM-45 or HBM-82
