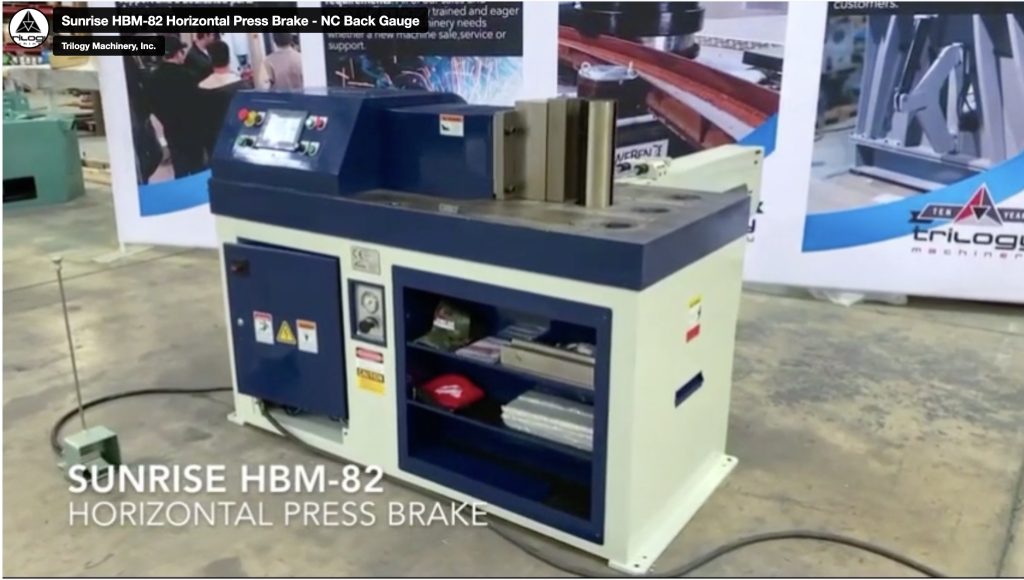

SUNRISE HBM-82 – Horizontal Bending Machine

Cylinder: 82 Tons – 12″ x 0.5″

Stroke: 14″

Forward Speed: 0.43″/sec

Backward Speed:  0.55″/sec

HP: 7.5

Power Requirements: 3 Phase | 220/480

Machine Size: 4600# – 70″ x 32″ x 50″

• 82 Ton Ram
• 14″ Adjustable Stroke
• Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
• Touch-Screen Controller with 50 Program Memory – 10 Bends per Program
• Two-hand Control or Locked Foot-Pedal
• Machined One-Piece Top Design – Cylinder Mounted on Top

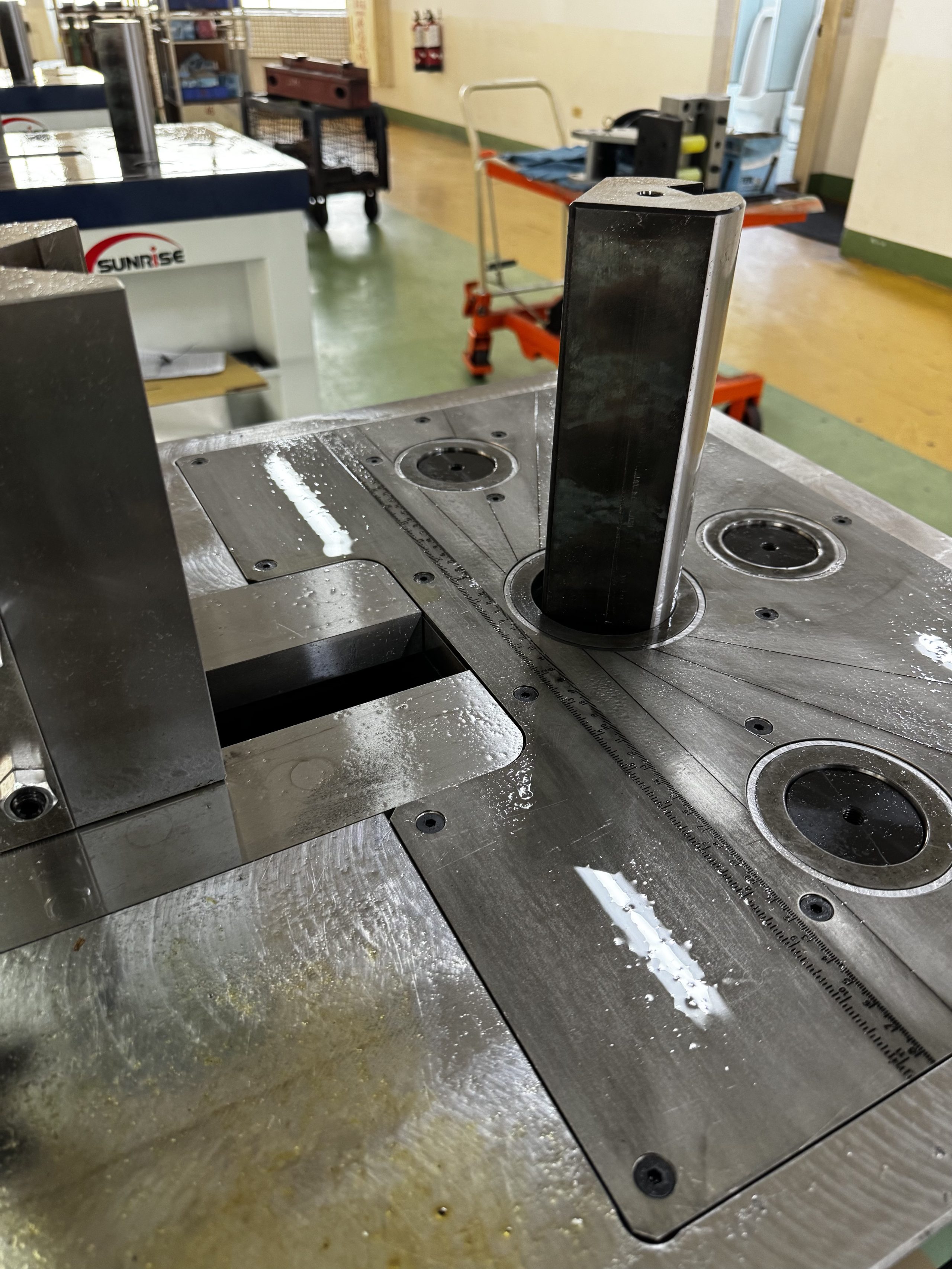

• Multiple Machined Holes for Additional Tooling
• Includes 3″ Single-Vee Die and Bending Punch
• 2-Year Parts Warranty

The SUNRISE hydraulic bending machines, available in either 45 or 82 tons, offer a wide range of tooling for different bending operations. Custom tooling is also available.

SUNRISE horizontal bending machines (HBM) feature:

• Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
• Programmable touch screen controller – Standard
• Jog mode for tooling alignment and programming
• Name-brand electric and hydraulic components ensure machine reliability

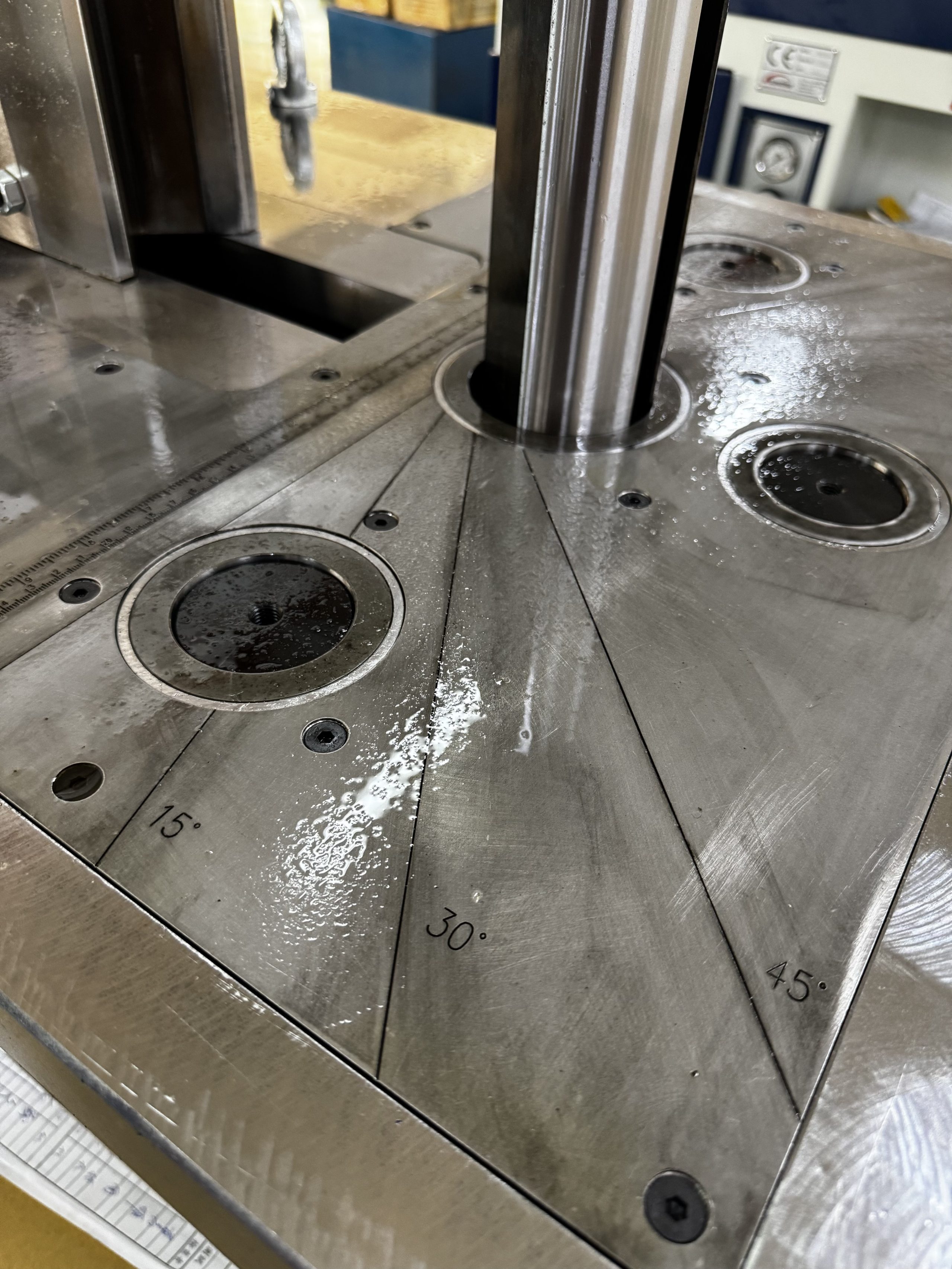

• CNC machined one-piece solid table design
• A wide range of standard and custom tooling is available

A manual back gauge is included for accurate positioning.

Both HBM models feature a standard programmable touch-screen controller with 50 program memory.

Trilogy Machinery offers 100% factory-authorized service and support and a full stock of spare parts and accessories in our northern Baltimore Location.
